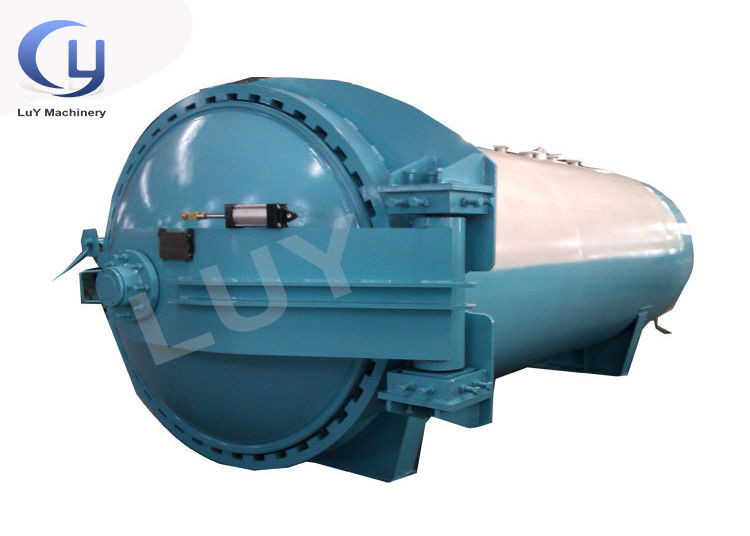

Horizontal Wooden Creosote Treatment Plant Automatic Control Temperature

Horizontal Wooden Creosote Treatment Plant Automatic Control Temperature

  • Horizontal Wooden Creosote Treatment Plant Automatic Control Temperature
  • Horizontal Wooden Creosote Treatment Plant Automatic Control Temperature
  • Horizontal Wooden Creosote Treatment Plant Automatic Control Temperature
  • Horizontal Wooden Creosote Treatment Plant Automatic Control Temperature
Horizontal Wooden Creosote Treatment Plant Automatic Control Temperature
Product Details:
Place of Origin: China
Brand Name: LUY
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Nude packing, can be shipped by containers or bulk cargo
Delivery Time: Shipped in 35 days after received payment
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000 set per year
Contact Now
Detailed Product Description
Material: Q345R Carbon Steel Design Temperature: 150℃
Design Pressure: 1.58Mpa Working Pressure: 1.0-1.4mpa
Control Ways: Semi-automatic Or PLC Control Open Door Ways: Manual Quickly Open Door
High Light:

wood pressure treatment plant

,

timber impregnation plant

Automatic Control Pressure Creosote Treatment Plant With Heating System Customize



Ⅰ Product description



Creosote wood pole treatment plant is mainly used to treat creosote wooden pole, and is suitable for non-water soluble pharmaceuticals such as creosote oil. This machine equipped with heating system, the heat source can be provided by a thermal oil furnace or a steam boiler. If the customer's company does not have a boiler, we can also provide it for you.



Ⅱ Main Model



Model Effective Diameter(mm) Effective Length(mm) Total capacity(cubic meter) Effective treat capacity(cubic meter)
DC1500*6000 1500 6000 10.6 7.0
DC1500*8000 1500 8000 14.1 9.4
DC1800*8000 1800 8000 20.3 13.5
DC1800*12000 1800 12000 30.5 20.3
DC1800*24000 1800 24000 61.0 40.6
DC2000*14000 2000 14000 43.9 29.3
DC2200*16000 2200 16000 60.8 40.5
DC2500*26000 2500 26000 127.5 85.0



Note: If the above model is not available, please tell us the diameter and length of the equipment you need. We can customize it for you. The maximum diameter which we can customize is 4.5m, the length can be customized according to users' needs.



Ⅲ Technical parameters



Design temperature(℃): 150℃

Design pressure(Mpa): 1.58Mpa

Working pressure:1.0-1.4mpa

Material: Q345R carbon steel(high pressure vessel special material

Open door ways: Manual quickly open door

Seal ways: Inflatable silicone seal

Safety ways: Double safety interlock ,tank with three safety interlock



Ⅳ Technology Process



1. Initial vacuum ,before add creosote ,begin initial vacuum,the purpose is to extract air cell ,reduce the resistance when the creosote entry into the wood/wood poles,in order to immerse better wood/wood poles The vacuum degree is 79.8-90kpa ,the time is up to product requirement.



2. Add creosote . In the vacuum state ,we add creosote ,and there is liquid level with storage tank ,after fill of the creosote oil .stop the valve.



3. heat stage ,open open button to heat creosote oil to dilute it.



4. Increase pressure : increase pressure into 1.0-1.4Mpa ,then keep pressure.



5. Discharge pressure and discharge creosote ,open the valve ,let the creosote oil come back to storage tank ,when it get liquid gauge level min limited , stop the valve.



6. Final vacuum ,open the vacuum system ,to extract the rest creosote oil ,reduce dropping liquid



7. take out of wood/wood poles.



Ⅴ Advantages



1. The material is Q345R steel which has good physical properties.Material is we purchased from famous manufacturer, quality is absolutely guaranteed.



2. Automatic submerged arc welding, it has advantages of good weld quality and good weld appearance. It also hasn’t arc radiation. And our company has own special flaw detection to ensure the quality of the machine.



3. Steam boiler as a heat source, heat pipes distribution in the left, right and bottom of the equipment, to ensure uniform heating.



4. The galvanized sheets which will not rust in ten years welded and fixed around the equipment and built in insulation cotton to ensure make full use of heat energy. The thickness of the insulation cotton is 50mm. Reduce heat loss and save energy and reduce processing costs.
