|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Nude packing, can be shipped by containers or bulk cargo|
|Delivery Time:||Shipped in 35 days after received payment|
|Payment Terms:||T/T, L/C, D/A, D/P, Western Union, MoneyGram|
|Supply Ability:||5000 set per year|
|Control Ways:||Semi-automatic Or PLC Control||Material:||Q345R Carbon Steel|
|Delivery Time:||About 35 Days||Length:||From 1m To 60m (Can Be Customized)|
|Working Medium:||Creosote Oil||Diameter:||Less Than4.5m|
wood pressure treatment plant,
timber impregnation plant

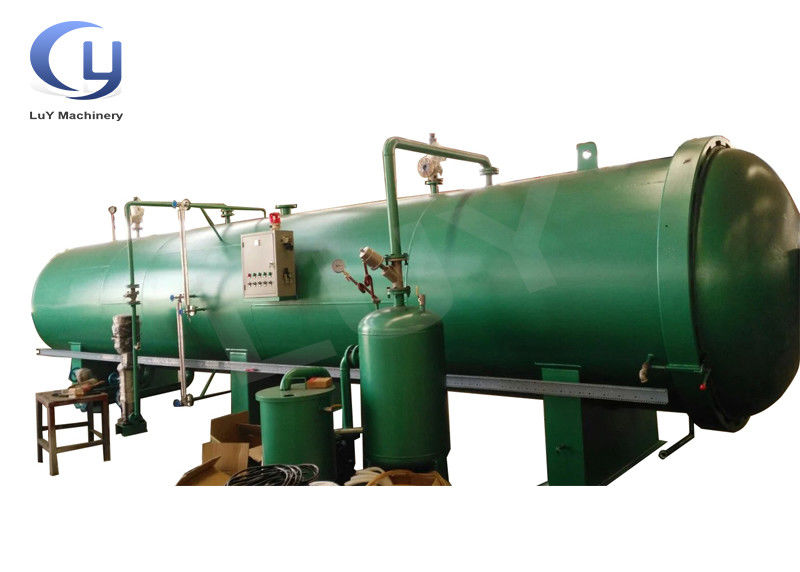

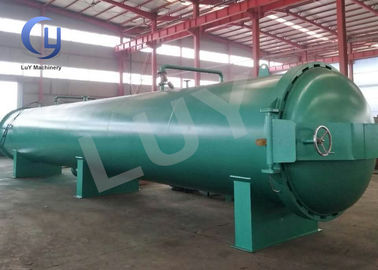

High Configuration Creosote Treatment Plant Automatic Control Pressure With Heating System
Ⅰ Product description
This creosote treatment plant equipped with heating system, the heat source can be provided by a thermal oil furnace or a steam boiler. If the customer's company does not have a boiler, we can also provide it for you.
Creosote wood pole treatment plant is mainly used to treat creosote wooden pole, and is suitable for non-water soluble pharmaceuticals such as creosote oil.
Ⅱ Main Model
|Type||Effective Diameter(mm)||Effective Length(mm)||Total capacity(cubic meter)||Effective treat capacity(cubic meter)|
Note: The maximum diameter which we can customize is 4.5m, the length can be customized according to users' needs.If the above model is not available, please tell us the diameter and length of the equipment you need. We can customize it for you.
Ⅲ Technical parameters
Material: Q345R carbon steel(high pressure vessel special material
Safety ways: Double safety interlock ,tank with three safety interlock
Open door ways: Manual quickly open door
Design temperature(℃): 150℃
Design pressure(Mpa): 1.58Mpa
Ⅳ Technology Process
1. Initial vacuum ,before add creosote ,begin initial vacuum,the purpose is to extract air cell ,reduce the resistance when the creosote entry into the wood/wood poles,in order to immerse better wood/wood poles The vacuum degree is 79.8-90kpa ,the time is up to product requirement.
2. Add creosote . In the vacuum state ,we add creosote ,and there is liquid level with storage tank ,after fill of the creosote oil .stop the valve.
3. heat stage ,open open button to heat creosote oil to dilute it.
4. Increase pressure : increase pressure into 1.0-1.4Mpa ,then keep pressure.
5. Discharge pressure and discharge creosote ,open the valve ,let the creosote oil come back to storage tank ,when it get liquid gauge level min limited , stop the valve.
6. Final vacuum ,open the vacuum system ,to extract the rest creosote oil ,reduce dropping liquid
7. take out of wood/wood poles.
1. The galvanized sheets which will not rust in ten years welded and fixed around the equipment and built in insulation cotton to ensure make full use of heat energy. The thickness of the insulation cotton is 50mm. Reduce heat loss and save energy and reduce processing costs.
2. Automatic submerged arc welding, it has advantages of good weld quality and good weld appearance. It also hasn’t arc radiation. And our company has own special flaw detection to ensure the quality of the machine.
3. Open door manually, open the door by electricity, open the door by hydraulic. Advanced open door method ,only one young girl can open the door easily.
4. The material is Q345R steel which has good physical properties.Material is we purchased from famous manufacturer, quality is absolutely guaranteed.
5. Automatic pressure safety interlocking method and manual safety interlocking method, it solved the safety problem of wrong operation.
