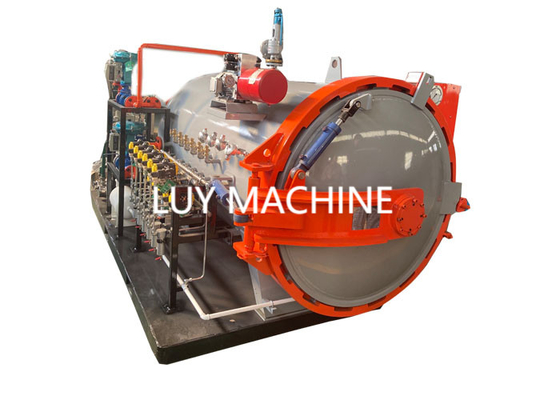

Electricity Surfboard Composite Fiber Curing Autoclave Vacuum Large Capacity

Electricity Surfboard Composite Fiber Curing Autoclave Vacuum Large Capacity

Applications:

1. Aerospace industry: manufacturing aircraft wings, vertical tails, and front fuselage: shell of large launch vehicles, aerospace Fiji structural parts, satellite bodies, solar panels, extendable arms, support bodies, spacecraft return modules and other components.

2. Weapon field: rebuild protective armor, weapons, helmets and other components

3. Electronic industry: satellite antenna and its supporting structure, solar cell wings, shell and other components

4. Automobile field: manufacturing automobile body, stress components, transmission shaft, engine frame and internal structure: rail transit field: composite high-speed train and subway doors and windows.

5. Public security anti-terrorism field: composite bulletproof vest, bulletproof helmet

6. Sports field: composite racket, jump club, golf club, rowing

7. Medical field: hospital X-ray machine, CT machine frame, and orthopedic stent

Competitive Advantage:

1. Advantage PLC control :The professional temperature control software for autoclave is adopted, which is composed of PLC temperature control module, temperature sensor, pressure sensor, controller, control box, link circuit, etc.

•The PLC temperature control module is used to collect the temperature data in the tank and transmit it to the PLC control box through the temperature sensor, and display the temperature value in the tank in real time on the computer.. In the insulation stage, the program automatically calls PID temperature setting to ensure the accuracy and stability of Wendi in the autoclave.

•The autoclave can be designed with multiple temperature measuring and control points to collect temperature data in the tank respectively, so that the temperature error in the tank can be controlled within plus or minus 0.5 ° C - plus or minus 2 ° C

•Reserve the pipeline and interface of the temperature sensor in the tank

•The temperature value is directly displayed, which is convenient and intuitive for operators to watch

•According to the process of different products, multiple sets of process parameters can be set independently

•The controllability of heating time can be controlled and changed according to different product process requirements

2.Vacuum control :Luy Machinery Co., Ltd. has designed that vacuum pumping and vacuum measurement can be controlled separately or centrally. Vacuum control only consists of vacuum pump, vacuum pumping pipeline, vacuum measuring pipeline, standby pipeline and vacuum buffer tank. Each vacuum pipeline is equipped with a pressure sensor, a pneumatic valve, and a manual valve. Each vacuum pipeline has a pressure leakage alarm. When any vacuum pipeline fails, the vacuum pipeline can be cut off to reduce the impact on the whole vacuum system and other vacuum pipelines. Ensure the temperature and safety of the vacuum system.

Vacuumize 1-50 channels for measurement and separation,

Vacuum pump: according to equipment configuration

• Heating control :Stainless steel heater

It adopts professional hot-press temperature control software, including aviation thermocouple, PLC module power regulator, control box, stainless steel heater,. The temperature data in the tank is collected by the aviation thermocouple and transmitted to the PLC, and then the output power is adjusted by the PLC and power regulator to the heating pipe, and the temperature value in the tank is displayed in real time on the calculation. The program in the insulation stage automatically calls PID temperature setting to ensure the accuracy and stability of the temperature in the autoclave. The high temperature fan distributes the heat evenly from the back to the front through the special temperature circulation plate, and the heat is pushed to the tank door and returned to the fan for diversion z

• Cooling control :according to product’s craft to choose cooling ways :wind cool and water cool
• Alarm :Over pressure alarm ,and after finished Audible and visual alarm
