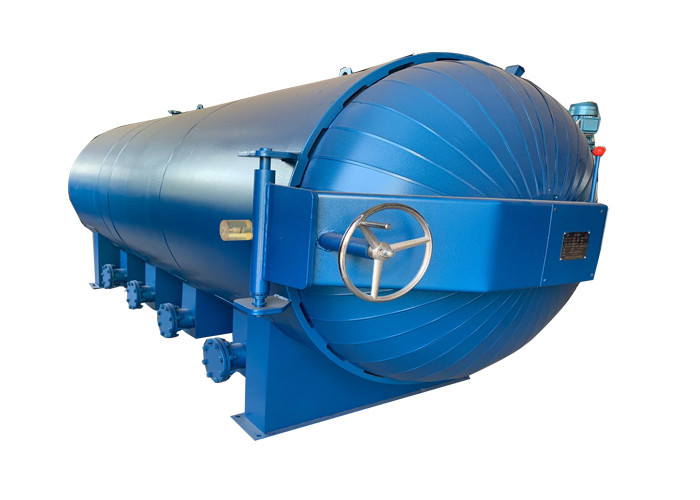

Customized Autoclave Carbon Steel or Stainless Steel
 |
| Place of Origin: | China |
| Brand Name: | LUY |
| Certification: | CE CU-TR ISO |
| Model Number: | DN1500 6000MM |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Nude packing, can be shipped by containers or bulk cargo |
| Delivery Time: | Shipped in 35 days after received payment |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 set per year |
| Product: | Building Material Shops Wood Treatment Impregnation Autoclave | Thickness: | 10mm |
|---|---|---|---|
| After Sales: | Engineer Is Avaible For Oversea Installation And Vedio Installation | Power: | 380v 415V |
| Function: | Wood Preservative | Ways: | Manual Or Automatically |
| Safety: | Maunal System And Automatical System | Color: | Green ,yellow |
| Control: | Semi -automatic Or PLC | ||
| High Light: | Wood Treatment Impregnation Autoclave,Building Shops Impregnation Autoclave,10mm Impregnation Autoclave |
||
Ⅰ Product description
is the key equipment of wood anticorrosion and coloring. Through the pharmaceutical infusion, pressure infiltration, vacuum drying and other processes, the wood in the storage tank can not only effectively prevent the mildew corrosion caused by wood rot bacteria, but also effectively prevent the damage of termites, wood borers and other insects to the wood. At the same time, adding different agentia can have the effect of flame retardant and coloring, greatly improving the service life and use effect of wood. Anticorrosive and flame retardant wood is widely used in indoor furniture, wood, antique garden construction, railways, mines, dock protection wood, pile of timber construction and other occasions.
Ⅱ Main Model
| Model | Total capacity (m3) | Treat capacity(m3) |
| DN 1200*6000mm | 6.7 | 4.5 |
| DN 1200*8000mm | 9.0 | 6.0 |
| DN 1500*4000mm | 7.0 | 4.71 |
| DN 1500*6000mm | 10.5 | 7.0 |
| DN 1500*8000mm | 14 | 9.4 |
| DN 1800*4000mm | 10.1 | 6.78 |
| DN 1800*6000mm | 15.2 | 10.17 |
| DN 1800*8000mm | 20.3 | 13.5 |
| DN 2000*6000mm | 18.8 | 12.5 |
| DN 2000*8000mm | 25 | 16.7 |
| DN 2000*10000mm | 31.4 | 20 |
| DN 2000*18000mm | 56 | 37 |
Note: The diameter and length can be customized according to users' needs. If the above model is not suitable, please tell us the diameter and length you need. We can customize it for you.
Ⅲ Technical parameters
Ⅳ
Working Principle:
A. Inicial vacuum:suck air out of tank and wood with vacuum pump and keep the vacuum status 15minute to 1 hour according to treatment aims. Vacuum status is good for agent liquid goes into wood.The vacuum degree can be 0.098MPa.
B .Agent liquid adding: under condition of vacuum pump agent liquid into tank.
C .Pressurizing:When tank is full of agent liquid, pressurize tank with pressure pump.The pressure inside tank will rise slowly to rated pressure.Then keep the tank under rated pressure until wood have absorbed enough agent liquid.
D. Pressure discharging:When wood have absorbed enough agent liquid,discharge inside pressure and agent liquid that have not been absorbed.
E. final vacuum:when the rest agent liquid has been discharged,suck air out of tank and wood with vacuum pump again to make redundant agent liquid exude from wood cells or surface to avoid liquid drops.
