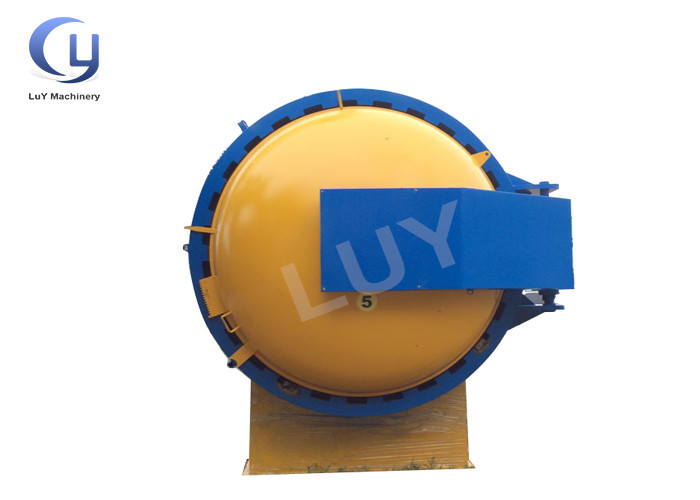

Giant Autoclave Impregnation Wood Treatment Plant Horizontal Type And High Pressure

Giant Autoclave Impregnation Wood Treatment Plant Horizontal Type And High Pressure

  • Giant Autoclave Impregnation Wood Treatment Plant Horizontal Type And High Pressure
Giant Autoclave Impregnation Wood Treatment Plant Horizontal Type And High Pressure
Product Details:
Place of Origin: China
Brand Name: LUY
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Nude packing, can be shipped by containers or bulk cargo
Delivery Time: Shipped in 35 days after received payment
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000 set per year
Contact Now
Detailed Product Description
Effective Length: 1m To 60m Diameter: 1.2m, 1.5m, 1.8m, 2.5m
Material: Q345R Carbon Steel Vacuum Degree: -0.098MPA
Installation: Overseas Service Provided Pressure: 1.0-1.4Mpa
High Light:

timber treatment plant


wood impregnation plant

CCA ACQ Tanalith Impregnation Vacuum Wood Treatment Plant Can Be Customized
Ⅰ Product description
Wood pressure treatment plant apply to wood’s corrosion protection, fire retardant, mothproof, fire prevention, insect-resistant, modification, dyeing, coking, degrease and deep processing. Wide applicability, better effect of processing, big capacity. reasonable layout, safety and reliable are the advantages of this equipment. And it also have advantages of reduce labor intensity and working cost. It completely meet the requirement of deep processing of all kinds of wood.
This wood treatment plant has a wide range of use, large treat capacity, safety and reliability, and can meet the deep processing requirements of users for various types of wood. Have been sold to the Philippines, Tanzania, Kenya, Uganda, Myanmar, Russia, Thailand, South Korea, Sweden and so on.
Ⅱ Main Model

TypeEffective Diameter(mm)Effective Length(mm)Total capacity(m3)Effective treat capacity(m3)

Note: The diameter and length can be customized according to users' needs. If the above model is not suitable, please tell us the diameter and length you need. We can customize it for you.
Ⅲ Technical parameters

ProjectUnitTechnical data
Design pressureMPa1.58Mpa
Working pressureMPA1.0-1.4Mpa
Vacuum degree(relative)MPa-0.098MPa
Power source 380v 3 phase 50hz
Material Q345R
Open door ways Manual open door ways
Seam method Silica gel seam
Safety ways Double safety device for door and three safety device for cylinder
Alarm ways Automatic light alarm ,over pressure and finish work

Ⅳ Technology Process
1. Inicial vacuum:suck air out of tank and wood with vacuum pump and keep the vacuum status 15minute to 1 hour according to treatment aims. Vacuum status is good for agent liquid goes into wood.The vacuum degree can be 0.098MPa.
2 .Chemicals liquid adding: under condition of vacuum pump agent liquid into tank.
3 .Pressurizing:When tank is full of agent liquid, pressurize tank with pressure pump.The pressure inside tank will rise slowly to rated pressure.Then keep the tank under rated pressure until wood have absorbed enough agent liquid.
4. Pressure discharging:When wood have absorbed enough agent liquid,discharge inside pressure and agent liquid that have not been absorbed.
5. final vacuum:when the rest agent liquid has been discharged,suck air out of tank and wood with vacuum pump again to make redundant agent liquid exude from wood cells or surface to avoid liquid drops.
Ⅴ Our advantages
1. What’s the material of this machine?
The material is Q345R steel which has good physical properties.
Material is we purchased from famous manufacturer, quality is absolutely guaranteed.
2.What’s the welding method?
Automatic submerged arc welding, it has advantages of good weld quality and good weld appearance. It also hasn’t arc radiation. And our company has own special flaw detection to ensure the quality of the machine
3.What’s the open door method?
Open door manually, open the door by electricity, open the door by hydraulic. Advanced open door method ,only one young girl can open the door easily.
Automatic pressure safety interlocking method and manual safety interlocking method, it solved the safety problem of wrong operation.
4.What’s the sealing way of the door?
With the gas-filled silica gel seal ring, the air filled style sealing effect of the equipment is significantly better than others’. And the lifetime is more than one year.
5.Is the control system manual, semi-automatic or full-automatic?
Our basic control system is semi-automatic operation system, and we also can supply full-automatic operation system.
6.What is the difference with other equipment in keep vacuum way ?
Our equipment using automatic angle seat valve, it can automatically make the equipment to maintain the vacuum. So the vacuum degree is better than other equipments.
7.Will the handling liquid flow out to cause the problem of pollution?
No, the baffle can prevent the residual fluid flow out. If there is residual liquid on wood surface, you can extract vacuum again to avoid drip phenomenon
Giant Autoclave Impregnation Wood Treatment Plant Horizontal Type And High Pressure 0
