Place of Origin: | China |
Brand Name: | LUY |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Nude packing, can be shipped by containers or bulk cargo |
Delivery Time: | Shipped in 35 days after received payment |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 5000 set per year |
Material: | Q345R Carbon Steel | Diameter: | 1.2m, 1.5m, 1.8m, 2m, 2.5m , 3.2m, 4.5m |
---|---|---|---|
Working Medium: | Water-soluble Chemicilas, Like CCA ACQ Tanalith | Working Principle: | Vacuum Pressure Impregnation Method |
Vacuum Degree: | -0.098Mpa | Installation: | Overseas Service Provided |
Highlight: | wood pressure treatment equipment,wood impregnation plant |
Have Sold To Kenya Wood Treatment Plant Automatic Control Vacuum And Pressure
Ⅰ Product description

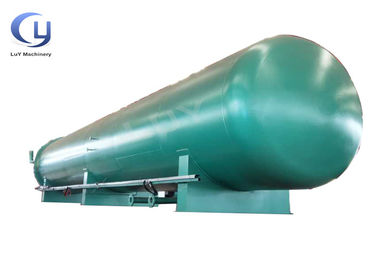

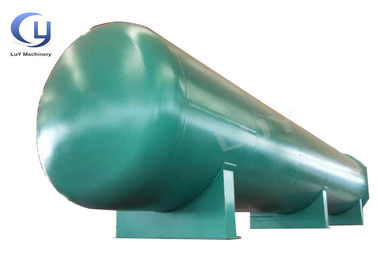

Wood treatment plant mainly used for deep processing of wood, vacuum pressure treatment method, so that the wood to achieve anti-corrosion, pest control, and other purposes. This device can be applied to various water-soluble chemicals such as CCA, ACQ, boric acid, Tanalith E and etc.
This timber preservative treatment plant has a wide range of use, large treat capacity, safety and reliability, and can meet the deep processing requirements of users for various types of wood. Have been sold to the Philippines, Tanzania, Kenya, Uganda, Myanmar, Russia, Thailand, South Korea, Sweden and so on.
Ⅱ Main Model
Model | Capacity/ stere | Treat capacity/ stere |
DN 1200*4000mm | 4.6 | 3.0 |
DN 1200*6000mm | 6.7 | 4.5 |
DN 1200*8000mm | 9.0 | 6.0 |
DN 1500*4000mm | 7.0 | 4.71 |
DN 1500*6000mm | 10.5 | 7.0 |
DN 1500*8000mm | 14 | 9.4 |
DN 1700*4000mm | 9.0 | 6.0 |
DN 1700*8000mm | 18.1 | 12 |
DN 1800*4000mm | 10.1 | 6.78 |
DN 1800*6000mm | 15.2 | 10.17 |
DN 1800*8000mm | 20.3 | 13.5 |
DN 2000*6000mm | 18.8 | 12.5 |
DN 2000*8000mm | 25 | 16.7 |
DN 2000*10000mm | 31.4 | 20 |
DN 2000*18000mm | 56 | 37 |
Note: The diameter and length can be customized according to users' needs. If the above model is not suitable, please tell us the diameter and length you need. We can customize it for you.
Ⅲ Technical parameters
No. | Project | Unit | Technical data |
1 | Design pressure | MPa | 1.58Mpa |
2 | Operatie pressure | MPA | 1.0-1.4Mpa |
3 | Vacuum degree(relative) | MPa | -0.098MPa |
4 | Power Supply | 380v 3 phase 50hz | |
5 | Material | Q345R carbon steel | |
6 | Open door ways | Manual open door ways | |
7 | Seam method | Silica gel seam | |
8 | Safety method | Double safety device for door and three safety device for cylinder | |
9 | Alarm ways | Automatic light alarm ,over pressure and finish work |
Ⅳ Technology Process
Initial vacuum: we need to keep the tank vacuum before filling of the wood preservative. And it will make the wood preservative into wood cells better. The vacuum degree is -79.8~90kpa and the vacuum time is according to different product(normally 15-60 minutes). when the cylinder in vacuum state, a part of air in the wood was taken out, the resistance will reduce when the wood preservative pushed into wood, so the wood preservative will be easy to get into wood cell.
Filling of preservative into tank: Add the wood preservative by manual valve when the equipment in vacuum state, to make sure the air which in the same condition was stopped in the wood cells. (the degree of vacuum is up to the size of valve)
Boost pressure stage: Begin to boost pressure lowly to 1.0-1.4MPa when the preservative is full of wood tank ,then keep the pressure value until the regulation preservative into the wood.
Pressure relief and discharge preservative: Discharge the pressure after the regulation preservative is absorbed. There will be a little recoil phenomenon(5-15%) during the process.
Final vacuum: Pumping air from the tank to keep the tank vacuum after the preservative discharged from the tank. The purpose is to extract excess wood preservative to reduce the phenomenon of oil dripping.
Recover atmosphere, then open the door and take out of timbers.
ⅤOur advantages
1. Double safety protection device :we design double safety device ,manual safety ,and automatic safety interlock ,Only there is pressure inside the tank ,the worker cann’t open the door .
2. Automatic set time function and light alarm ,save worker’s time ,you can set any time in the control box ,once it finish ,it will stop work and alarm
3. Quickly discharge chemical :10 minutes to discharge chemical ,improve treated time

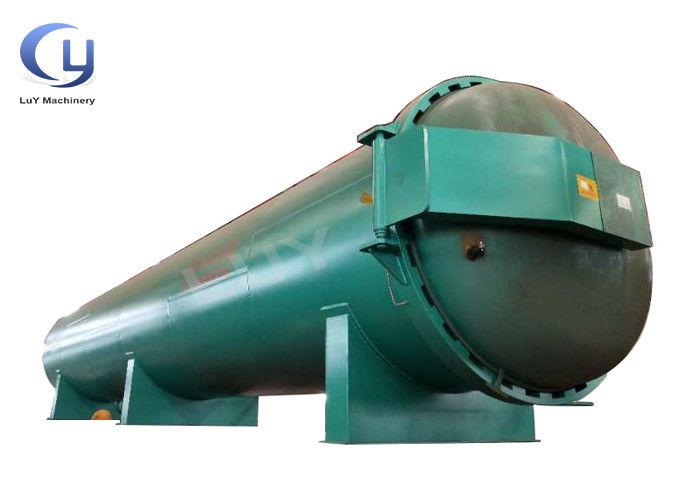

4. -- Manual quick open door way, advanced open door method, only one young girl can open the door easily. Double safety device, automatic safety interlocking device and Manual safety interlocking device, it solved the safety problem of wrong operation.
5. Our machines are equipped with a filtration system that filters out impurities.
6. We have special sewage outlets to prevent the residual chemicals flowing out, will not pollute the factory floor.
7. Many of our valves are automatic control stainless steel valves, which are several times the price of ordinary valves.
