Customized Autoclave  Carbon Steel or Stainless Steel





Home ProductsWood Treatment Plant

Wood Cooking Soft Modification Wood Treatment Plant

Wood Cooking Soft Modification Wood Treatment Plant

  • Wood Cooking Soft Modification Wood Treatment Plant
  • Wood Cooking Soft Modification Wood Treatment Plant
  • Wood Cooking Soft Modification Wood Treatment Plant
  • Wood Cooking Soft Modification Wood Treatment Plant
Wood Cooking Soft Modification Wood Treatment Plant
Product Details:
Place of Origin: China
Brand Name: LUY
Certification: ISO CE
Model Number: DN1500 6000MM
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Nude packing, can be shipped by containers or bulk cargo
Delivery Time: Shipped in 35 days after received payment
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000 set per year
Contact Now
Detailed Product Description
Material: Q345R Carbon Steel Vacuum Degree: -0.098Mpa
Installation: Overseas Service Provided Working Principle: Wood Cooking Soft Modification Wood Treatment Plant
Material: Q345R OR SS304 Function: Soft Wood ,Change Wood Shape And Color
Pressure: 1.2-4.0Mpa Control: Semi Automatic Or PLC Control System
Warranty: 1YEAR Voltage: 380V 50HZ 3phase, 380V/50HZ, Customer Requirement, 220v/380v/440v Optional
Length: Custom Made
High Light:

wood pressure treatment equipment


wood impregnation plant

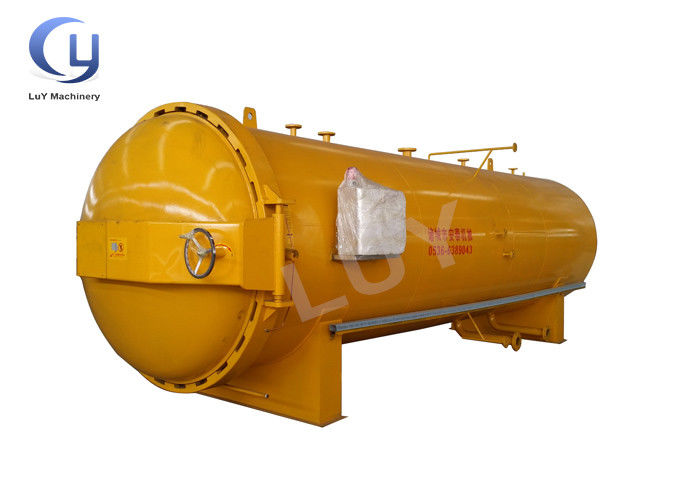

Wood Cooking Soft Modification Wood Treatment Plant


Ⅰ Product description


Wood Cooking Soft Modification is that preventing wood material from Worms, bacteria and other organisms destroy. Such as termite.It is one of wood technology .Adopt differnt chemical preservative to make wood protector,prolong wood using life time and reduce wood consumption.It widely use in protection treatment of pole material ,lumber material ,plate material .


Wood pressure treatment plant apply to wood’s corrosion protection, fire retardant, mothproof, fire prevention, insect-resistant, modification, dyeing, coking, degrease and deep processing. Wide applicability, better effect of processing, big capacity. reasonable layout, safety and reliable are the advantages of this equipment. And it also have advantages of reduce labor intensity and working cost. It completely meet the requirement of deep processing of all kinds of wood.


Ⅱ Main Model


Type Total Capacity(m3) Effective capacity(m3)
DN 1200*6000mm 6.7 4.5
DN 1200*8000mm 9.0 6.0
DN 1500*4000mm 7.0 4.71
DN 1500*6000mm 10.5 7.0
DN 1500*8000mm 14 9.4
DN 1800*4000mm 10.1 6.78
DN 1800*6000mm 15.2 10.17
DN 1800*8000mm 20.3 13.5
DN 2000*6000mm 18.8 12.5
DN 2000*8000mm 25 16.7
DN 2000*10000mm 31.4 20
DN 2000*18000mm 56 37


Note: The diameter and length of Wood Cooking Soft Modification can be customized according to users' needs. If the above model is not suitable, please tell us the diameter and length you need. We can customize it for you.



Ⅲ Technical parameters


No. Name Unit Technical data
1 Design pressure MPa 1.58Mpa
2 Working pressure MPA 1.0-1.4Mpa
3 Vacuum degree(relative) MPa -0.098MPa
4 Power source   380v 3 phase 50hz
5 Material   Q345R
6 Open door ways   Manual open door ways
7 Seam method   Silica gel seam
8 Safety ways   Double safety device for door and three safety device for cylinder
9 Alarm ways   Automatic light alarm ,over pressure and finish work


Ⅳ Technology Process


Extract Vacuum---holding vacuum and adding medicament---open the pressurizing pump after reaching the liquid level ---maintain the required pressure to infuse the medicament into the wood cells for a period of time—pressure unloading—discharge Reagents --- Vacuum again --- Restoring atmospheric pressure --- Open the tank door and remove the wood --- Complete


Ⅴ Our advantages


1. Double safety protection device :we design double safety device ,manual safety ,and automatic safety interlock ,Only there is pressure inside the tank ,the worker cann’t open the door .


2. Automatic set time function and light alarm ,save worker’s time ,you can set any time in the control box ,once it finish ,it will stop work and alarm


3. Quickly discharge chemical :10 minutes to discharge chemical ,improve treated time


4. Perfect tightness :we use air filled style to seam the door and the system match automatic inlet and outlet air pneumatic valve, it can balance tank pressure well .


5. High efficiency ,save energy ,once the equipment finish vacuum and pressure stage ,the pump will stop ,but whole tank still keep vacuum state


6. Advanced open door method ,only one young girl can open the door easierly


Wood Cooking Soft Modification Wood Treatment Plant 0
