Customized Autoclave  Carbon Steel or Stainless Steel





Home ProductsWood Treatment Plant

CCA Treatment Process / Wood Treatment Plant With Anti Floating System

CCA Treatment Process / Wood Treatment Plant With Anti Floating System

  • CCA Treatment Process / Wood Treatment Plant With Anti Floating System
  • CCA Treatment Process / Wood Treatment Plant With Anti Floating System
  • CCA Treatment Process / Wood Treatment Plant With Anti Floating System
  • CCA Treatment Process / Wood Treatment Plant With Anti Floating System

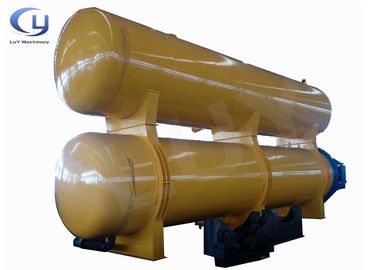

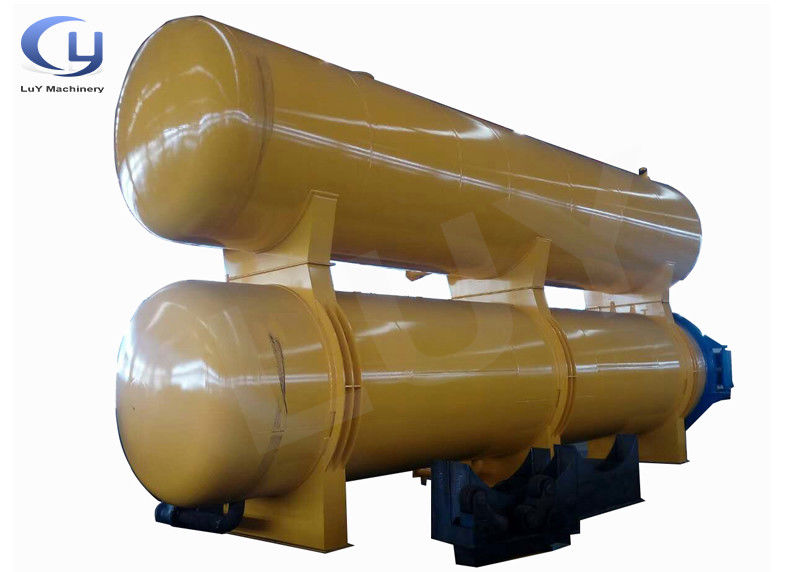

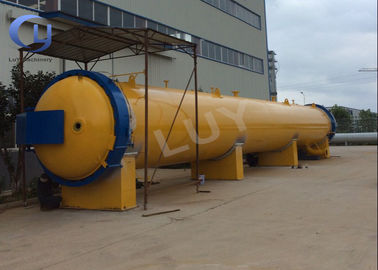

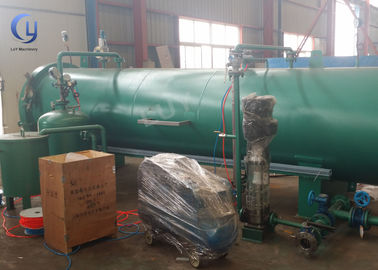

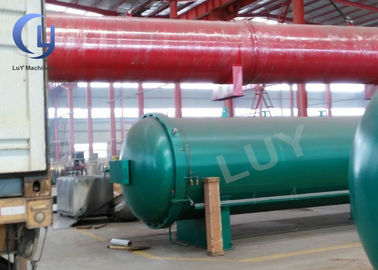

CCA Treatment Process / Wood Treatment Plant With Anti Floating System
Product Details:
Place of Origin: China
Brand Name: LUY
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Nude packing, can be shipped by containers or bulk cargo
Delivery Time: Shipped in 35 days after received payment
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000 set per year
Contact Now
Detailed Product Description
Material: Q345R Carbon Steel Pressure: 1.0-1.4Mpa
Vacuum Degree: -0.098Mpa Delivery Time: About 35 Days
Working Principle: Vacuum Pressure Impregnation Method Treat Capacity: Can Be Customized
High Light:

timber treatment plant


wood pressure treatment equipment

CCA ACQ Tanalith Automatic Pressure Treatment Plant With Anti Floating System


Ⅰ Product description


Wood pressure treatment plant mainly used for deep processing of wood, vacuum pressure treatment method, so that the wood to achieve anti-corrosion, pest control, and other purposes. This device can be applied to various water-soluble chemicals such as CCA, ACQ, boric acid, Tanalith E and etc.


This pressure treatment plant has a wide range of use, large treat capacity, safety and reliability, and can meet the deep processing requirements of users for various types of wood. Have been sold to the Philippines, Tanzania, Kenya, Uganda, Myanmar, Russia, Thailand, South Korea, Sweden and so on.


Ⅱ Main Model


Type Total Capacity(m3) Effective capacity(m3)
DN 1200*6000mm 6.7 4.5
DN 1200*8000mm 9.0 6.0
DN 1500*4000mm 7.0 4.71
DN 1500*6000mm 10.5 7.0
DN 1500*8000mm 14 9.4
DN 1800*4000mm 10.1 6.78
DN 1800*6000mm 15.2 10.17
DN 1800*8000mm 20.3 13.5
DN 2000*6000mm 18.8 12.5
DN 2000*8000mm 25 16.7
DN 2000*10000mm 31.4 20
DN 2000*18000mm 56 37


Note: The diameter and length can be customized according to users' needs. If the above model is not suitable, please tell us the diameter and length you need. We can customize it for you.



Ⅲ Technical parameters


No. Name Unit Technical data
1 Design pressure MPa 1.58Mpa
2 Working pressure MPA 1.0-1.4Mpa
3 Vacuum degree(relative) MPa -0.098MPa
4 Power source   380v 3 phase 50hz
5 Material   Q345R
6 Open door ways   Manual open door ways
7 Seam method   Silica gel seam
8 Safety ways   Double safety device for door and three safety device for cylinder
9 Alarm ways   Automatic light alarm ,over pressure and finish work


Ⅳ Technology Process


Initial vacuum: we need to keep the tank vacuum before filling of the wood preservative. And it will make the wood preservative into wood cells better. The vacuum degree is -79.8~90kpa and the vacuum time is according to different product(normally 15-60 minutes). when the cylinder in vacuum state, a part of air in the wood was taken out, the resistance will reduce when the wood preservative pushed into wood, so the wood preservative will be easy to get into wood cell.


Filling of preservative into tank: Add the wood preservative by manual valve when the equipment in vacuum state, to make sure the air which in the same condition was stopped in the wood cells. (the degree of vacuum is up to the size of valve)


Boost pressure stage: Begin to boost pressure lowly to 1.0-1.4MPa when the preservative is full of wood tank ,then keep the pressure value until the regulation preservative into the wood.


Pressure relief and discharge preservative: Discharge the pressure after the regulation preservative is absorbed. There will be a little recoil phenomenon(5-15%) during the process.

Final vacuum: Pumping air from the tank to keep the tank vacuum after the preservative discharged from the tank. The purpose is to extract excess wood preservative to reduce the phenomenon of oil dripping.

Recover atmosphere, then open the door and take out of timbers.


ⅤOur advantages


1.-- The material of this machine is Q345R steel, is the special steel plate for pressure vessel, we purchase from famous Jinan steel factory.


2. -- Our company has own special flaw detection to ensure the quality of products.


3. -- Manual quick open door way, advanced open door method, only one young girl can open the door easily. Double safety device, automatic safety interlocking device and Manual safety interlocking device, it solved the safety problem of wrong operation.


4.-- Our machines are equipped with a filtration system that filters out impurities.


5. -- We have special sewage outlets to prevent the residual chemicals flowing out, will not pollute the factory floor.


6. -- Many of our valves are automatic control stainless steel valves, which are several times the price of ordinary valves.


7. -- Regardless of whether it is a vacuum pump, air compressor or pipeline, our configuration is relatively high, and the equipment is highly working efficient, which also saves costs for users.


CCA Treatment Process / Wood Treatment Plant With Anti Floating System 0
