Customized Autoclave Carbon Steel or Stainless Steel
 |
| Place of Origin: | China |
| Brand Name: | LUY |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Nude packing, can be shipped by containers or bulk cargo |
| Delivery Time: | Shipped in 50 days after received payment |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 set per year |
| Length: | Can Be Customized | Working Pressure: | 0.1-0.7Mpa |
|---|---|---|---|
| Working Medium: | Hot Air | Heat Ways: | Electric Heating Or Boiler Heating |
| Diameter: | 1.8m, 2.2m | ||
| High Light: | heat treatment machine,heat treatment plant for wood |
||

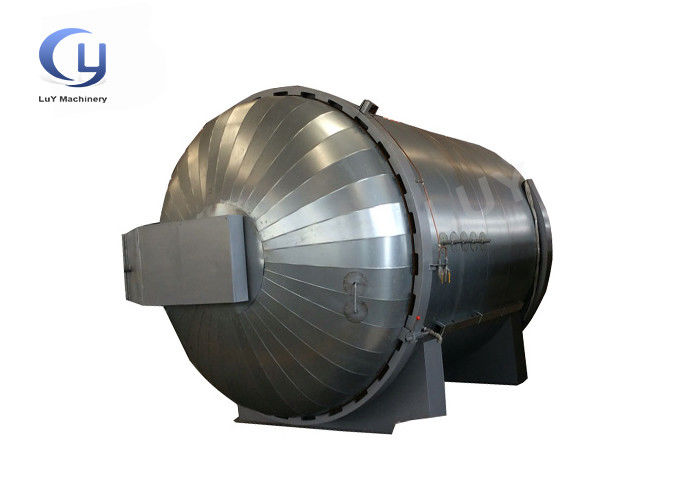

High Temperature Wood Heat Treatment Equipment With Double Safety Interlocking
Ⅰ Product description
Thermo wood machine can effectively improve the dimensional stability and the anticorrosion property of timbers. Without any chemicals, the process of coking which have no harm to human and environment can make the wood antique color. This equipment solve the relation between coking process parameters and the effect of carbonization by the control of the carbonization temperature and holding time. The process parameters of the equipment play a decisive role to the performance of the coking wood.
Ⅱ Technical parameters
| Type | Effective Diameter(mm) | Effective Length(mm) | Total capacity(m3) | Effective treat capacity(m3) |
| T1800*6000mm | 1800 | 6000 | 15.5 | 8 |
| T1800*8000mm | 1800 | 6000 | 20.3 | 10 |
| T2200*6000mm | 2200 | 8000 | 23 | 11 |
| T2200*8000mm | 2200 | 8000 | 31 | 16 |
Ⅲ Technology Process
Put the wood into the tank---- high temperature steam dry in the tank----- high temperature heat treatment ------cooling-----balance the pressure and recover the room temperature----take the wood out-----Finish
Ⅳ Our advantage
Full automatic control by computer. PLC automatic computer control system to ensure accurate and reliable control, add medium circulation device to ensure uniform heat treatment, carbonization treated wood fineness uniform, no smell.
The frame of the equipment is made of stainless steel to prevent corrosion. Stainless steel tank, corrosion resistance, durability, processing and flexible.
High precision and better effect of treatment. Six sets of security system to ensure safe operation of equipment.
Easy to operate, energy saving and environmental protection.
Using anaerobic carbonization. According carbonization needs to maintain an oxygen-free vacuum carbonized in the carbonization process, the temperature is between 160 ~ 230 ℃ adjustable.
Suitable for mass production of high-end wood processing enterprises.
