Place of Origin: | China |
Brand Name: | LUY |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Nude packing, can be shipped by containers or bulk cargo |
Delivery Time: | Shipped in 35 days after received payment |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 5000 set per year |
Length: | 1m -60m | Diameter: | Less Than4.5m |
---|---|---|---|
Working Medium: | Water-soluble Chemicilas, Like CCA ACQ Tanalith | Working Principle: | Vacuum Pressure Impregnation Method |
Delivery Time: | About 35 Days | Origin: | China |
High Light: | timber treatment plant,wood pressure treatment equipment |
High Configuration Wood Treatment Plant Passed Government Test With Filter
Ⅰ Product description
Wood treatment plant mainly used for deep processing of wood, vacuum pressure treatment method, so the wood to achieve anti-corrosion, pest control, and other purposes. This wood treatment plant applied to various water-soluble chemicals such as CCA, ACQ, boric acid, Tanalith E and etc.
We have a large number of sucess case and shipping pictures and have exported to many countries, like Philippines, Uganda, Zambia, Kenya, Switzerland,Thailand, South Korea, Tanzania, Myanmar, Russia, Indonesia and ect.
Ⅱ Main Model
Type | Effective Diameter(mm) | Effective Length(mm) | Total capacity(m3) | Effective treat capacity(m3) |
DN1500*4000 | 1500 | 4000 | 7.0 | 4.7 |
DN1500*6000 | 1500 | 6000 | 10.6 | 7.0 |
DN1500*8000 | 1500 | 8000 | 14.1 | 9.4 |
DN2500*12000 | 2500 | 12000 | 58.8 | 39.2 |
DN2500*14000 | 2500 | 14000 | 68.6 | 45.7 |
DN1800*8000 | 1800 | 8000 | 20.3 | 13.5 |
DN2000*14000 | 2000 | 14000 | 43.9 | 29.3 |
DN1800*10500 | 1800 | 10500 | 26.7 | 17.8 |
DN1200*6000 | 1200 | 6000 | 6.7 | 4.5 |
DN3200*16000 | 3200 | 16000 | 128.6 | 85.7 |
Note: The diameter and length can be customized according to users' needs. If the above model is not suitable, please tell us the diameter and length you need. We can customize it for you.
Ⅲ Technical parameters
Design pressure:1.58MPA
Operation pressure:1.0-1.4MPA
Voltage: 380V
Operation medium: various water-soluble chemicals like CCA ACQ
Material:Q345R carbon steel
Vacuum operation:-0.098MPA
Ⅳ Technology Process
Extract Vacuum---holding vacuum and adding medicament---open the pressurizing pump after reaching the liquid level ---maintain the required pressure to infuse the medicament into the wood cells for a period of time—pressure unloading—discharge Reagents --- Vacuum again --- Restoring atmospheric pressure --- Open the tank door and remove the wood --- Complete
ⅤOur advantages
1.-- The material of this machine is Q345R steel, is the special steel plate for pressure vessel, we purchase from famous Jinan steel factory.
2. -- Our company has own special flaw detection to ensure the quality of products.

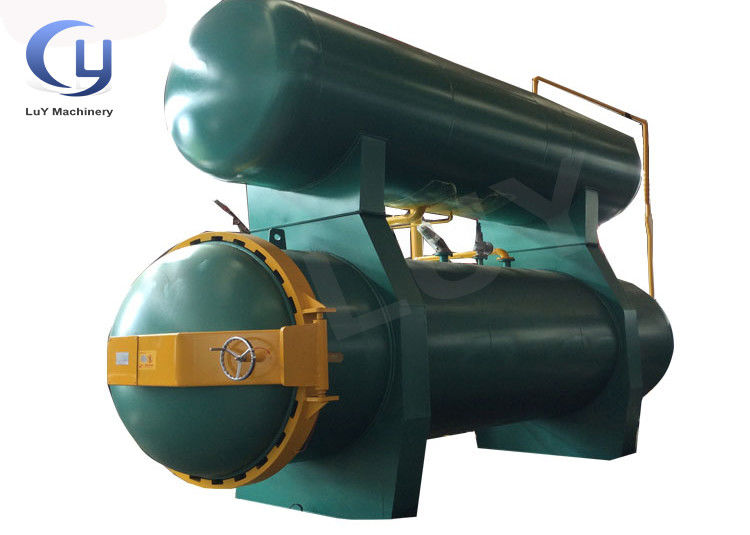

3. -- Manual quick open door way, advanced open door method, only one young girl can open the door easily. Double safety device, automatic safety interlocking device and Manual safety interlocking device, it solved the safety problem of wrong operation.
4.-- Our machines are equipped with a filtration system that filters out impurities.
5. -- We have special sewage outlets to prevent the residual chemicals flowing out, will not pollute the factory floor.
