Customized Autoclave Carbon Steel or Stainless Steel

|
| Place of Origin: | China |
| Brand Name: | LUY |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Nude packing, can be shipped by containers or bulk cargo |
| Delivery Time: | Shipped in 35 days after received payment |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 set per year |
| Effective Length: | From 1m To 60m (Can Be Customized) | Diameter: | 1.2m, 1.5m, 1.8m, 2m, 2.5m , 3.2m, 4.5m |
|---|---|---|---|
| Origin: | China | Working Principle: | Vacuum Pressure Impregnation Method |
| Treat Capacity: | Can Be Customized | Installation: | Overseas Service Provided |
| Highlight: | timber treatment plant,wood pressure treatment equipment |
||

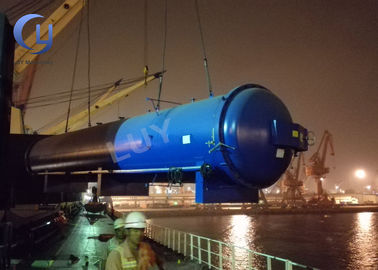

Have Sold To Tanzania Wood Treatment Plant With Filter System High Configuration
Ⅰ Product description
Wood treatment plant mainly used for deep processing of wood, vacuum pressure treatment method, so the wood to achieve anti-corrosion, pest control, and other purposes. This wood treatment plant applied to various water-soluble chemicals such as CCA, ACQ, boric acid, Tanalith E and etc.
This wood Treatment Plant have been sold to the Myanmar, Russia, Thailand, South Korea, Philippines, Tanzania, Kenya, Uganda, Sweden and so on.Has a wide use range, safety and reliability, and can meet the deep processing requirements of users for various types of wood.
Ⅱ Main Model
| Type | Effective Diameter(mm) | Effective Length(mm) | Total capacity(m3) | Effective treat capacity(m3) |
| DN1500*4000 | 1500 | 4000 | 7.0 | 4.7 |
| DN1500*6000 | 1500 | 6000 | 10.6 | 7.0 |
| DN1800*10500 | 1800 | 10500 | 26.7 | 17.8 |
| DN1200*4000 | 1200 | 4000 | 4.5 | 3.0 |
| DN1200*6000 | 1200 | 6000 | 6.7 | 4.5 |
| DN2500*12000 | 2500 | 12000 | 58.8 | 39.2 |
| DN2500*14000 | 2500 | 14000 | 68.6 | 45.7 |
| DN3200*16000 | 3200 | 16000 | 128.6 | 85.7 |
| DN1800*8000 | 1800 | 8000 | 20.3 | 13.5 |
| DN2000*14000 | 2000 | 14000 | 43.9 | 29.3 |
Note: The diameter and length can be customized according to users' needs. If the above model is not suitable, please tell us the diameter and length you need. We can customize it for you.
Ⅲ Technical parameters
Design pressure:1.58MPA
Voltage:can be customized according to users’ needs
Vacuum operation:-0.098MPA
Working medium: various water-soluble agent like CCA ACQ
Working pressure:1.0-1.4MPA
Material:Q345R carbon steel
Ⅳ Technology Process
Extract Vacuum---holding vacuum and adding medicament---open the pressurizing pump after reaching the liquid level ---maintain the required pressure to infuse the medicament into the wood cells for a period of time—pressure unloading—discharge Reagents --- Vacuum again --- Restoring atmospheric pressure --- Open the tank door and remove the wood --- Complete
ⅤOur advantages
1. Our equipment automatically controls pressure and vacuum,our equipment once reach the pressure or fixed vacuum , the pressure pump or vacuum pump will stop by itself , once lower than the fixed point, the pumps will start working by automatic control system.
For example ,the power of pressure pump is 5.5kw ,for treat one circle ,our pump only work 30-60 mins ,for other company's it will work 120-180mins .
Each day saving much production cost for the users .
2.-- The material of this machine is Q345R steel, is the special steel plate for pressure vessel, we purchase from famous Jinan steel factory.
3. -- We have special sewage outlets to prevent the residual chemicals flowing out, will not pollute the factory floor.
4. -- Many of our valves are automatic control stainless steel valves, which are several times the price of ordinary valves.
5. -- Regardless of whether it is a vacuum pump, air compressor or pipeline, our configuration is relatively high, and the equipment is highly working efficient, which also saves costs for users.
