Customized Autoclave Carbon Steel or Stainless Steel
 |
| Place of Origin: | China |
| Brand Name: | LUY |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Nude packing, can be shipped by containers or bulk cargo |
| Delivery Time: | Shipped in 35 days after received payment |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 set per year |
| Length: | From 1m To 60m (Can Be Customized) | Diameter: | 1.2m, 1.5m, 1.8m, 2m, 2.5m , 3.2m, 4.5m |
|---|---|---|---|
| Vacuum Degree: | -0.098Mpa | Pressure: | 1.0-1.4Mpa |
| Origin: | China | Treat Capacity: | Can Be Customized |
| High Light: | timber treatment plant,wood impregnation plant |
||

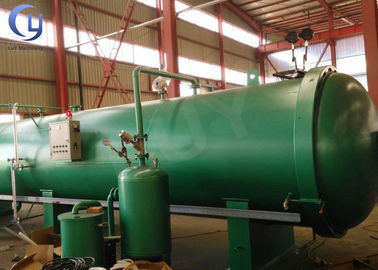

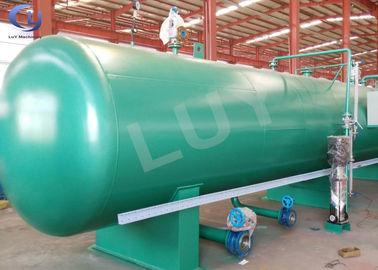

Automatic Control Pressure Wood Treatment Plant With Double Safety Interlocking
Ⅰ Product description
This equipment has a wide range of use, large treat capacity, safety and reliability, and can meet the deep processing requirements of users for various types of wood. Have been sold to the Philippines, Tanzania, Kenya, Uganda, Myanmar, Russia, Thailand, South Korea, Sweden and so on.
Wood treatment plant mainly used for deep processing of wood, vacuum pressure treatment method, so that the wood to achieve anti-corrosion, pest control, and other purposes. This device can be applied to various water-soluble chemicals such as CCA, ACQ, boric acid, Tanalith E and etc.
Ⅱ Main Model
| Type | Effective Diameter(mm) | Effective Length(mm) | Total capacity(cubic meter) | Effective treat capacity(cubic meter) |
| DN1500*4000 | 1500 | 4000 | 7.0 | 4.7 |
| DN1500*6000 | 1500 | 6000 | 10.6 | 7.0 |
| DN1800*6000 | 1800 | 6000 | 15.2 | 10.1 |
| DN1800*8000 | 1800 | 8000 | 20.3 | 13.5 |
| DN1800*10500 | 1800 | 10500 | 26.7 | 17.8 |
| DN2000*12000 | 2000 | 12000 | 37.6 | 25.1 |
| DN2000*14000 | 2000 | 14000 | 43.9 | 29.3 |
| DN2200*16000 | 2200 | 16000 | 60.8 | 40.5 |
| DN2500*12000 | 2500 | 12000 | 58.8 | 39.2 |
| DN1200*4000 | 1200 | 4000 | 4.5 | 3.0 |
| DN1200*6000 | 1200 | 6000 | 6.7 | 4.5 |
Note: The maximum diameter which we can customize is 4.5 meters, the length can be customized according to users' needs. If the above model is not available, please tell us the diameter and length you need. We can customize it for you.
Ⅲ Technical parameters
Working media: various water-soluble wood protection treatment agents
Material:Q345R carbon steel
Voltage:380v 3 phase 50hz(can be customized according to users’ needs)
Design pressure:1.58MPA
Working pressure:1.0-1.4MPA
Vacuum degree:-0.098MPA
Ⅳ Technology Process
Extract Vacuum---holding vacuum and adding medicament---open the pressurizing pump after reaching the liquid level ---maintain the required pressure to infuse the medicament into the wood cells for a period of time—pressure unloading—discharge Reagents --- Vacuum again --- Restoring atmospheric pressure --- Open the tank door and remove the wood --- Complete
Ⅴ Our advantages
1. Our equipment automatically controls pressure and vacuum,our equipment once reach the pressure or fixed vacuum , the pressure pump or vacuum pump will stop by itself , once lower than the fixed point, the pumps will start working by automatic control system.
For example ,the power of pressure pump is 5.5kw ,for treat one circle ,our pump only work 30-60 mins ,for other company's it will work 120-180mins .
Each day saving much production cost for the users .
2.-- The material of this machine is Q345R steel, is the special steel plate for pressure vessel, we purchase from famous Jinan steel factory.
3. -- Our company has own special flaw detection to ensure the quality of products.

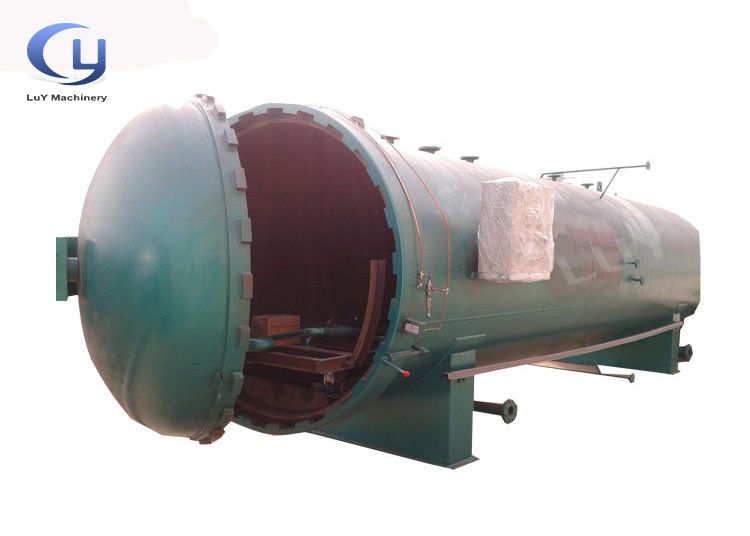

4. -- Manual quick open door way, advanced open door method, only one young girl can open the door easily. Double safety device, automatic safety interlocking device and Manual safety interlocking device, it solved the safety problem of wrong operation.
5.-- Our machines are equipped with a filtration system that filters out impurities.
