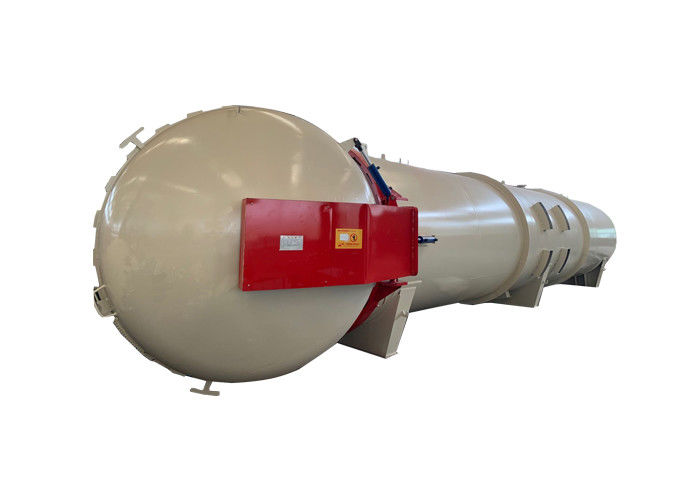

1.2Mpa Wood Anti Corrosion Vacuum Drying Autoclave

1.2Mpa Wood Anti Corrosion Vacuum Drying Autoclave

    • 1.2Mpa Wood Anti Corrosion Vacuum Drying Autoclave
  • 1.2Mpa Wood Anti Corrosion Vacuum Drying Autoclave

    Product Details:

    Place of Origin: China
    Brand Name: LUY
    Certification: CE CU-TR ISO
    Model Number: DN1800 12000MM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Nude packing, can be shipped by containers or bulk cargo
    Delivery Time: Shipped in 35 days after received payment
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 5000 set per year
    Contact Now
    Detailed Product Description
    Product: Vacuum High Pressure Wood Anti-corrosion Tank Vacuum Drying Autoclave Function: Wood Fire Retardant ,Anti-corrosion
    Thickness: 12mm Material: Q345R Special Pressure Vessl
    After Sales: Video Technical Support,Engineers Available To Service Machinery Overseas Application: Wood Poles ,wood Fence ,wooden House
    High Light:

    Anti Corrosion Vacuum Drying Autoclave

    ,

    Wood Vacuum Drying Autoclave

    ,

    1.2Mpa Vacuum Drying Autoclave

    Vacuum High Pressure Wood Anti-corrosion Tank Vacuum Drying Autoclave

    Ⅰ Product description

    Wood impregnation sulphurization tank is the key equipment of wood anticorrosion and coloring. Through the pharmaceutical infusion, pressure infiltration, vacuum drying and other processes, the wood in the storage tank can not only effectively prevent the mildew corrosion caused by wood rot bacteria, but also effectively prevent the damage of termites, wood borers and other insects to the wood. At the same time, adding different agentia can have the effect of flame retardant and coloring, greatly improving the service life and use effect of wood. Anticorrosive and flame retardant wood is widely used in indoor furniture, wood, antique garden construction, railways, mines, dock protection wood, pile of timber construction and other occasions.
    1.2Mpa Wood Anti Corrosion Vacuum Drying Autoclave 0


    Ⅱ Main Model

    ModelTotal capacity (m3)Treat capacity(m3)
    DN 1200*6000mm6.74.5
    DN 1200*8000mm9.06.0
    DN 1500*4000mm7.04.71
    DN 1500*6000mm10.57.0
    DN 1500*8000mm149.4
    DN 1800*4000mm10.16.78
    DN 1800*6000mm15.210.17
    DN 1800*8000mm20.313.5
    DN 2000*6000mm18.812.5
    DN 2000*8000mm2516.7
    DN 2000*10000mm31.420
    DN 2000*18000mm5637


    Note: The diameter and length can be customized according to users' needs. If the above model is not suitable, please tell us the diameter and length you need. We can customize it for you.
     1.2Mpa Wood Anti Corrosion Vacuum Drying Autoclave 1

    Ⅲ Technical parameters


    ProjectUnitTechnical data
    Product Name Vaccum Pressure Wood Treatment Impregnated Wood Poles Treatment Autoclave
    Working pressureMPA1.0-1.2Mpa
    Vacuum degree(relative)MPa-0.098MPa
    Power source 220 v 3 phase 50hz
    Material Q345R
    Open door ways Manual open door ways
    Seam method Silica gel seam
    Safety ways Double safety device for door and three safety device for cylinder
    Alarm ways Automatic light alarm ,over pressure and finish work


    Ⅳ Vaccum Pressure Wood Treatment Impregnated Wood Poles Treatment Autoclave  Technology Process

    1.The first phase of the process is to use a vacuum to remove the air from the pieces of wood.
    2.Next, non-harmful preservatives that are water-based or composed of other safe substances are then injected into the wood. This is what gives the wood the ability to last longer and resist the harm caused by bugs, rain, and other environmental elements.
    3.The last phase of the process involves drying up the wood so it can be processed for shipping.
