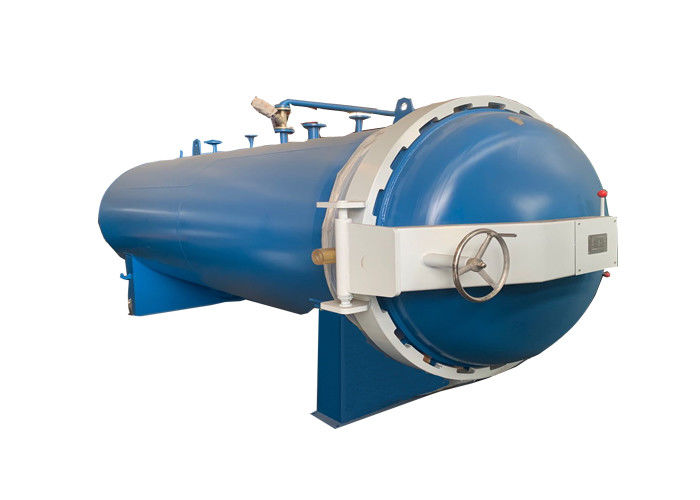

Timber Vacuum Pressure Impregnation Autoclave Fire Retardant

Timber Vacuum Pressure Impregnation Autoclave Fire Retardant

    • Timber Vacuum Pressure Impregnation Autoclave Fire Retardant
  • Timber Vacuum Pressure Impregnation Autoclave Fire Retardant

    Product Details:

    Place of Origin: China
    Brand Name: LUY
    Certification: CE CU-TR
    Model Number: DN1500 6000MM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Nude packing, can be shipped by containers or bulk cargo
    Delivery Time: Shipped in 35 days after received payment
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 5000 set per year
    Contact Now
    Detailed Product Description
    Key Word: Timber Treatment Wood Fire Retardant Vacuum Pressure Impregnation Autoclave Function: Fire Retardant
    Thickness: 12mm Material: Q345R
    Production Capacity: 8-10cubic Meter Condition: New
    High Light:

    Vacuum Pressure Impregnation Autoclave

    ,

    Fire Retardant Impregnation Autoclave

    ,

    Q345R Impregnation Autoclave

    Timber Treatment Wood Fire Retardant Vacuum Pressure Impregnation Autoclave



    Ⅰ Product description



    Automatic vacuum pressure treating wood preservative machine apply to wood’s corrosion protection, fire retardant, mothproof, fire prevention, insect-resistant, modification, dyeing, coking, degrease and deep processing. Wide applicability, better effect of processing, big capacity. reasonable layout, safety and reliable are the advantages of this equipment. And it also have advantages of reduce labor intensity and working cost. It completely meet the requirement of deep processing of all kinds of wood.





    Ⅱ Main Model



    Model Total capacity (m3) Treat capacity(m3)
    DN 1200*6000mm 6.7 4.5
    DN 1200*8000mm 9.0 6.0
    DN 1500*4000mm 7.0 4.71
    DN 1500*6000mm 10.5 7.0
    DN 1500*8000mm 14 9.4
    DN 1800*4000mm 10.1 6.78
    DN 1800*6000mm 15.2 10.17
    DN 1800*8000mm 20.3 13.5
    DN 2000*6000mm 18.8 12.5
    DN 2000*8000mm 25 16.7
    DN 2000*10000mm 31.4 20
    DN 2000*18000mm 56 37



    Note: The diameter and length can be customized according to users' needs. If the above model is not suitable, please tell us the diameter and length you need. We can customize it for you.





    Ⅲ Technical parameters



    Project Unit Technical data
    Product Name   Timber Treatment Wood Fire Retardant Vacuum Pressure Impregnation Autoclave
    Working pressure MPA 1.0-1.2Mpa
    Vacuum degree(relative) MPa -0.098MPa
    Power source   220 v 3 phase 50hz
    Material   Q345R
    Open door ways   Manual open door ways
    Seam method   Silica gel seam
    Safety ways   Double safety device for door and three safety device for cylinder
    Alarm ways   Automatic light alarm ,over pressure and finish work



    Ⅳ  Timber Treatment Wood Fire Retardant Vacuum Pressure Impregnation Autoclave Technology Process



    1.The first phase of the process is to use a vacuum to remove the air from the pieces of wood.
    2.Next, non-harmful preservatives that are water-based or composed of other safe substances are then injected into the wood. This is what gives the wood the ability to last longer and resist the harm caused by bugs, rain, and other environmental elements.
    3.The last phase of the process involves drying up the wood so it can be processed for shipping.



    Timber Vacuum Pressure Impregnation Autoclave Fire Retardant 0

    Timber Vacuum Pressure Impregnation Autoclave Fire Retardant 1Timber Vacuum Pressure Impregnation Autoclave Fire Retardant 2Timber Vacuum Pressure Impregnation Autoclave Fire Retardant 3
