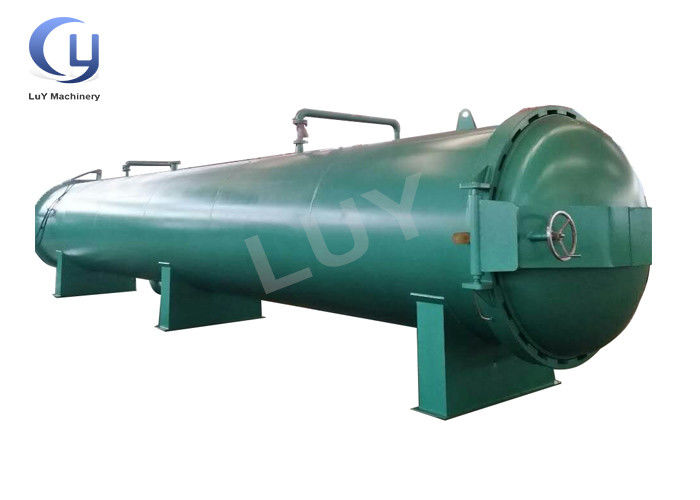

Wood Impregnation Plant / Industrial Autoclave Machine Big Operation Frequency

Wood Impregnation Plant / Industrial Autoclave Machine Big Operation Frequency

    • Wood Impregnation Plant / Industrial Autoclave Machine Big Operation Frequency
  • Wood Impregnation Plant / Industrial Autoclave Machine Big Operation Frequency

    Product Details:

    Place of Origin: China
    Brand Name: LUY

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Nude packing, can be shipped by containers or bulk cargo
    Delivery Time: Shipped in 35 days after received payment
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 5000 set per year
    Contact Now
    Detailed Product Description
    Effective Length: Can Be Customized Diameter: 1.2m, 1.5m, 1.8m, 2.5m
    Working Medium: Water-soluble Chemicilas Working Principle: Vacuum Pressure Impregnation Method
    Installation: Overseas Service Provided Pressure: 1.0-1.4Mpa
    High Light:

    wood pressure treatment equipment

    ,

    wood impregnation plant

    Timber Wood Treatment Plant CCA ACQ Tanalith Impregnation Autoclave Customized



    Ⅰ Product description



    wood treatment plant is that preventing wood material from Worms, bacteria and other organisms destroy. Such as termite.It is one of wood technology .Adopt differnt chemical preservative to make wood protector,prolong wood using life time and reduce wood consumption.It widely use in protection treatment of pole material ,lumber material ,plate material .



    This wood treatment plant has a wide range of use, large treat capacity, safety and reliability, and can meet the deep processing requirements of users for various types of wood. Have been sold to the Philippines, Tanzania, Kenya, Uganda, Myanmar, Russia, Thailand, South Korea, Sweden and so on.



    Ⅱ Main Model



    Model Total capacity (m3) Treat capacity(m3)
    DN 1200*6000mm 6.7 4.5
    DN 1200*8000mm 9.0 6.0
    DN 1500*4000mm 7.0 4.71
    DN 1500*6000mm 10.5 7.0
    DN 1500*8000mm 14 9.4
    DN 1800*4000mm 10.1 6.78
    DN 1800*6000mm 15.2 10.17
    DN 1800*8000mm 20.3 13.5
    DN 2000*6000mm 18.8 12.5
    DN 2000*8000mm 25 16.7
    DN 2000*10000mm 31.4 20
    DN 2000*18000mm 56 37



    Note: The diameter and length can be customized according to users' needs. If the above model is not suitable, please tell us the diameter and length you need. We can customize it for you.





    Ⅲ Technical parameters



    Project Unit Technical data
    Design pressure MPa 1.58Mpa
    Working pressure MPA 1.0-1.4Mpa
    Vacuum degree(relative) MPa -0.098MPa
    Power source   380v 3 phase 50hz
    Material   Q345R
    Open door ways   Manual open door ways
    Seam method   Silica gel seam
    Safety ways   Double safety device for door and three safety device for cylinder
    Alarm ways   Automatic light alarm ,over pressure and finish work



    Ⅳ Technology Process



    Initial vacuum: we need to keep the tank vacuum before filling of the wood preservative. And it will make the wood preservative into wood cells better. The vacuum degree is -79.8~90kpa and the vacuum time is according to different product(normally 15-60 minutes). when the cylinder in vacuum state, a part of air in the wood was taken out, the resistance will reduce when the wood preservative pushed into wood, so the wood preservative will be easy to get into wood cell.



    Filling of preservative into tank: Add the wood preservative by manual valve when the equipment in vacuum state, to make sure the air which in the same condition was stopped in the wood cells. (the degree of vacuum is up to the size of valve)



    Boost pressure stage: Begin to boost pressure lowly to 1.0-1.4MPa when the preservative is full of wood tank ,then keep the pressure value until the regulation preservative into the wood.



    Pressure relief and discharge preservative: Discharge the pressure after the regulation preservative is absorbed. There will be a little recoil phenomenon(5-15%) during the process.



    Final vacuum: Pumping air from the tank to keep the tank vacuum after the preservative discharged from the tank. The purpose is to extract excess wood preservative to reduce the phenomenon of oil dripping.



    Recover atmosphere, then open the door and take out of timbers.



    Ⅴ Our advantages



    1. The material of the plant is Q345R steel, is the special steel plate for pressure vessel, we purchase from famous Jinan steel factory.



    2. Open door way and safety device

    Manual open door way, advanced open door method, only one young girl can open the door easily. Double safety device, automatic safety interlocking device and Manual safety interlocking device, it solved the safety problem of wrong operation.



    3. The sealing way

    With the gas-filled silica gel seal ring, the air filled style sealing effect of the equipment is significantly better than others’. And the life of the equipment is more than one year.



    4. Welding method

    Automatic submerged arc welding, it has advantages of high productivity, good weld quality and low labor intensity. And it also hasn’t arc radiation.

    Our company has own special flaw detection to ensure the quality of products.



    5. Test

    Each plant must be doing water pressure test before leave factory, and government inspection personnel come our factory every week, and testing each plant.



    6. Level control:

    With magnetic level gauge, when the tank preservative added to the specified location, close the valve to stop preservatives enter.



          7. Vacuum control:

    Automatic control vacuum, when you press the button, start extract vacuum. When reach the vacuum point, the vacuum pump stop automatically, save energy and reduce cost.



    Wood Impregnation Plant / Industrial Autoclave Machine Big Operation Frequency 0
