CCA ACQ Impregnation Wood Treatment Plant Autoclave Oven Professional

China CCA ACQ Impregnation Wood Treatment Plant Autoclave Oven Professional supplier

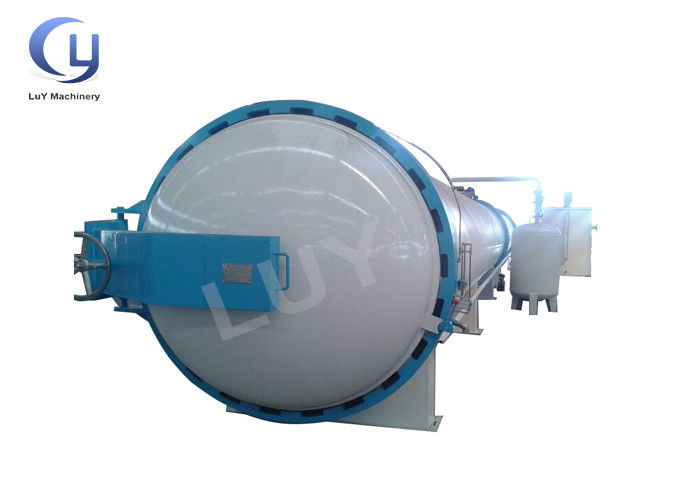

Large Image :  CCA ACQ Impregnation Wood Treatment Plant Autoclave Oven Professional

Product Details:

Place of Origin: China
Brand Name: LUY

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Nude packing, can be shipped by containers or bulk cargo
Delivery Time: Shipped in 35 days after received payment
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000 set per year
Contact Now
Detailed Product Description
Effective Length: Can Be Customized Diameter: 1.2m, 1.5m, 1.8m, 2.5m
Working Medium: Water-soluble Chemicilas Working Principle: Vacuum Pressure Impregnation Method
Installation: Overseas Service Provided

CCA ACQ Impregnation Wood Treatment Plant High Configuration Sold To Russia



Ⅰ Product description



Wood treatment plant apply to wood’s corrosion protection, fire retardant, mothproof, fire prevention, insect-resistant, modification, dyeing, coking, degrease and deep processing. Wide applicability, better effect of processing, big capacity. reasonable layout, safety and reliable are the advantages of this equipment. And it also have advantages of reduce labor intensity and working cost. It completely meet the requirement of deep processing of all kinds of wood.





Ⅱ Main Model



Type Effective Diameter(mm) Effective Length(mm) Total capacity(m3) Effective treat capacity(m3)
DN1500*4000 1500 4000 7.0 4.7
DN1500*6000 1500 6000 10.6 7.0
DN1500*8000 1500 8000 14.1 9.4
DN2500*12000 2500 12000 58.8 39.2
DN2500*14000 2500 14000 68.6 45.7
DN1800*8000 1800 8000 20.3 13.5
DN2000*14000 2000 14000 43.9 29.3
DN1800*10500 1800 10500 26.7 17.8
DN1800*12000 1800 12000 30.5 20.3
DN1200*6000 1200 6000 6.7 4.5
DN1200*8000 1200 8000 9.0 6.0
DN3200*16000 3200 16000 128.6 85.7



Note: The diameter and length can be customized according to users' needs. If the above model is not suitable, please tell us the diameter and length you need. We can customize it for you.





Ⅲ Technical parameters



Project Unit Technical data
Design pressure MPa 1.58Mpa
Working pressure MPA 1.0-1.4Mpa
Vacuum degree(relative) MPa -0.098MPa
Power source   380v 3 phase 50hz
Material   Q345R
Open door ways   Manual open door ways
Seam method   Silica gel seam
Safety ways   Double safety device for door and three safety device for cylinder
Alarm ways   Automatic light alarm ,over pressure and finish work

Ⅳ Technology Process



Extract Vacuum---holding vacuum and adding medicament---open the pressurizing pump after reaching the liquid level ---maintain the required pressure to infuse the medicament into the wood cells for a period of time—pressure unloading—discharge Reagents --- Vacuum again --- Restoring atmospheric pressure --- Open the tank door and remove the wood --- Complete



Ⅴ Our advantages



1.-- The material of this machine is Q345R steel, is the special steel plate for pressure vessel, we purchase from famous Jinan steel factory.



2. -- Our company has own special flaw detection to ensure the quality of products.



3. -- Manual quick open door way, advanced open door method, only one young girl can open the door easily. Double safety device, automatic safety interlocking device and Manual safety interlocking device, it solved the safety problem of wrong operation.



4.-- Our machines are equipped with a filtration system that filters out impurities.



5. -- We have special sewage outlets to prevent the residual chemicals flowing out, will not pollute the factory floor.



6. -- Many of our valves are automatic control stainless steel valves, which are several times the price of ordinary valves.



7. -- Regardless of whether it is a vacuum pump, air compressor or pipeline, our configuration is relatively high, and the equipment is highly working efficient, which also saves costs for users.
