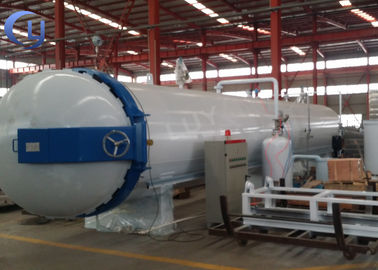

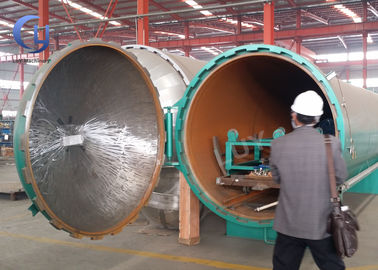

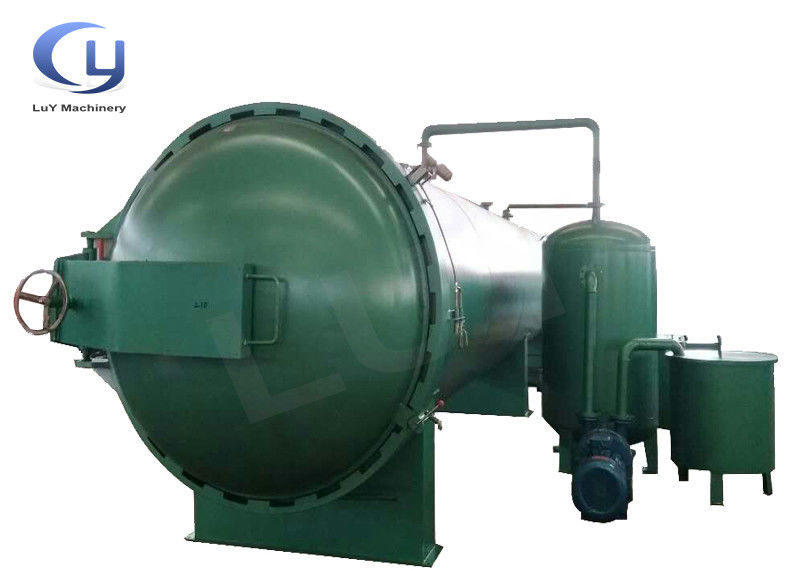

High Efficiency Industrial Wood Treatment Machine With Filter System

High Efficiency Industrial Wood Treatment Machine With Filter System

    • High Efficiency Industrial Wood Treatment Machine With Filter System
    • High Efficiency Industrial Wood Treatment Machine With Filter System
    • High Efficiency Industrial Wood Treatment Machine With Filter System
    • High Efficiency Industrial Wood Treatment Machine With Filter System
  • High Efficiency Industrial Wood Treatment Machine With Filter System

    Product Details:

    Place of Origin: China
    Brand Name: LUY

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable

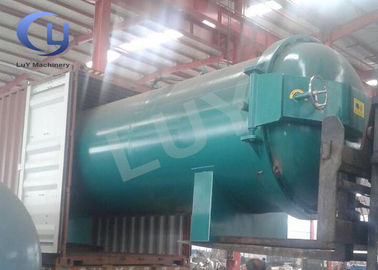

    Packaging Details: Nude packing, can be shipped by containers or bulk cargo
    Delivery Time: Shipped in 35 days after received payment
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 5000 set per year
    Contact Now
    Detailed Product Description
    Material: Q345R Carbon Steel Diameter: 1.2m, 1.5m, 1.8m, 2m, 2.5m , 3.2m, 4.5m
    Working Medium: Water-soluble Chemicilas, Like CCA ACQ Tanalith Delivery Time: About 35 Days
    Working Principle: Vacuum Pressure Impregnation Method Treat Capacity: Can Be Customized

    CCA ACQ Tanalith Automatic Industrial Wood Treatment Machine With Filter System



    ⅠProduct description



    Wood pressure treatment plant apply to wood’s corrosion protection, fire retardant, mothproof, fire prevention, insect-resistant, modification, dyeing, coking, degrease and deep processing. Wide applicability, better effect of processing, big capacity. reasonable layout, safety and reliable are the advantages of this equipment. And it also have advantages of reduce labor intensity and working cost. It completely meet the requirement of deep processing of all kinds of wood.



    This equipment has a wide range of use, large treat capacity, safety and reliability, and can meet the deep processing requirements of users for various types of wood. Have been sold to the Philippines, Tanzania, Kenya, Uganda, Myanmar, Russia, Thailand, South Korea, Sweden and so on.



    ⅡMain Model



    Model Total Capacity(m3) Treat capacity(m3)
    DN 1200*6000mm 6.7 4.5
    DN 1200*8000mm 9.0 6.0
    DN 1500*4000mm 7.0 4.71
    DN 1500*6000mm 10.5 7.0
    DN 1500*8000mm 14 9.4
    DN 1800*4000mm 10.1 6.78
    DN 1800*6000mm 15.2 10.17
    DN 1800*8000mm 20.3 13.5
    DN 2000*6000mm 18.8 12.5
    DN 2000*8000mm 25 16.7
    DN 2000*10000mm 31.4 20
    DN 2000*18000mm 56 37



    Note:The diameter and length can be customized according to users' needs. If the above model is not suitable, please tell us the diameter and length you need. We can customize it for you.





    Ⅲ Technical parameters



    No. Name Unit Technical data
    1 Design pressure MPa 1.58Mpa
    2 Working pressure MPA 1.0-1.4Mpa
    3 Vacuum degree(relative) MPa -0.098MPa
    4 Power source   380v 3 phase 50hz
    5 Material   Q345R
    6 Open door ways   Manual open door ways
    7 Seam method   Silica gel seam
    8 Safety ways   Double safety device for door and three safety device for cylinder
    9 Alarm ways   Automatic light alarm ,over pressure and finish work



    Ⅳ Technology Process



    Initial vacuum: we need to keep the tank vacuum before filling of the wood preservative. And it will make the wood preservative into wood cells better. The vacuum degree is -79.8~90kpa and the vacuum time is according to different product(normally 15-60 minutes). when the cylinder in vacuum state, a part of air in the wood was taken out, the resistance will reduce when the wood preservative pushed into wood, so the wood preservative will be easy to get into wood cell.



    Filling of preservative into tank: Add the wood preservative by manual valve when the equipment in vacuum state, to make sure the air which in the same condition was stopped in the wood cells. (the degree of vacuum is up to the size of valve)



    Boost pressure stage: Begin to boost pressure lowly to 1.0-1.4MPa when the preservative is full of wood tank ,then keep the pressure value until the regulation preservative into the wood.



    Pressure relief and discharge preservative: Discharge the pressure after the regulation preservative is absorbed. There will be a little recoil phenomenon(5-15%) during the process.


    Final vacuum: Pumping air from the tank to keep the tank vacuum after the preservative discharged from the tank. The purpose is to extract excess wood preservative to reduce the phenomenon of oil dripping.

    Recover atmosphere, then open the door and take out of timbers.



    ⅤOur advantages



    1. Double safety protection device :we design double safety device ,manual safety ,and automatic safety interlock ,Only there is pressure inside the tank ,the worker cann’t open the door .



    2. Automatic set time function and light alarm ,save worker’s time ,you can set any time in the control box ,once it finish ,it will stop work and alarm



    3. Quickly discharge chemical :10 minutes to discharge chemical ,improve treated time



    4. Perfect tightness :we use air filled style to seam the door and the system match automatic inlet and outlet air pneumatic valve, it can balance tank pressure well .



    5. High efficiency ,save energy ,once the equipment finish vacuum and pressure stage ,the pump will stop ,but whole tank still keep vacuum state



    6. Advanced open door method ,only one young girl can open the door easierly
