Industrial Food Sterilizer Machine Autoclave / High Pressure Sterilization Machine

China Industrial Food Sterilizer Machine Autoclave / High Pressure Sterilization Machine supplier

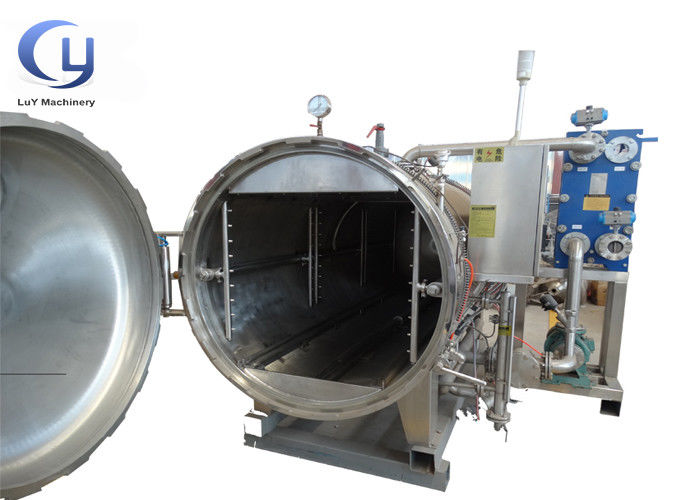

Large Image :  Industrial Food Sterilizer Machine Autoclave / High Pressure Sterilization Machine

Product Details:

Place of Origin: China
Brand Name: LUY

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Nude packing, can be shipped by containers or bulk cargo
Delivery Time: Shipped in 35 days after received payment
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000 set per year
Contact Now
Detailed Product Description
Installation: Overseas Service Provided Treat Capacity: Can Be Customized
Length: 1.2m, 1.8m, 2m, 2.2m, 2.4m, 2.6m,3.6m Origin: China
The Maximum Operating Temperature: 143℃ Working Principle: 121℃ High Temperature Sterilization

Can Be Customized Food Sterilizer Machine High Temperature High Temperature



Ⅰ Product description



Food sterilizer machine researched and development by the low-acid food heating processing expert, it’sdesigning and manufacturing according to national standard and some regulation of FDA. Reasonable inner pipelined esigning ensure evenly heat distribution and fast heat penetration. Allocate F-value to control sterilizing effect based on customer’s demand, keep food’s flavor, colour and nutrition, and enhance attached value of food product, increase economic benefit for client.



The PLC control is used to precisely control the temperature, pressure and sterilization time in the sterilization process. The sterilization formula can be designed according to the type and technical requirements of the customer's products.



Ⅱ Main Model



Type Total capacity(m³) Treat capacity(m³) Trolley number Basket number
ATP700*1200 0.46 0.25 1 3
ATP900*1800 1.1 0.57 2 8
ATP1000*2400 1.8 1.0 3 12
ATP1200*3600 4.0 2.0 4 20



Note: If the above model is not available, please tell us the treat capacity you need. We can customize it for you.





Ⅲ Technical parameters



Name Technical Data
Test pressure 0.44Mpa
Design pressure 0.35 Mpa
Maximum operating pressure 0.30 Mpa
The maximum operating temperature 143℃
Design temperature 147℃
Heating method Electric heating or using steam boiler as heat source
Voltage 380 V 3 phase 50Hz(can be customized)
Material SUS304 stainless steel
Water quality requirement Sterilizing water, cooling water for tap water, not more than 25 mg/L chloride ion content

































Ⅳ  Our advantages



1. Using double tank hot water circulation method to sterilization, hot water heated to the temperature of the sterilization requirements before sterilization to shorten the sterilization time and improve work efficiency.



2. Using international advanced technology and hot water circulation immersion method to sterilization. Full automatic intelligent control system. Precise temperature control(±0.5°c).



3. Working medium can be recycled, save the energy, time and the consumption of manpower and material resources, reduce the production cost.


4. The system preheated by precess water (optional) can ensure that the temperature of the heat-insulated and heat-filled products rise continuously.


5. Uniform water exchange method, uniform temperature, no dead ends

Circulating water circulated constantly and uniformly in sterilization tank. Ensure uniform heat distribution at any point in the process of heating, insulation and cooling. So the packed foods of different positions of the tray gained the ideal uniform heating effect, effectively eliminate the phenomenon of blind Angle in the process of sterilization. Make the product a longer shelf life. Reduce F value variation and the phenomenon of excessive cooking.
