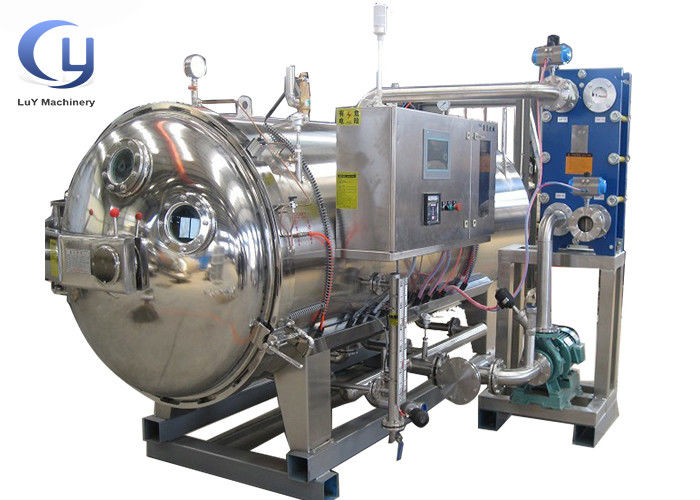

High Temperature Food Sterilizer Machine Autoclave Food Processing 3 Phase 50Hz

High Temperature Food Sterilizer Machine Autoclave Food Processing 3 Phase 50Hz

    • High Temperature Food Sterilizer Machine Autoclave Food Processing 3 Phase 50Hz
  • High Temperature Food Sterilizer Machine Autoclave Food Processing 3 Phase 50Hz

    Product Details:

    Place of Origin: China
    Brand Name: LUY

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Nude packing, can be shipped by containers or bulk cargo
    Delivery Time: Shipped in 35 days after received payment
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 5000 set per year
    Contact Now
    Detailed Product Description
    Installation: Overseas Service Provided Treat Capacity: Can Be Customized
    Length: 1.2m, 1.8m, 2m, 2.2m, 2.4m, 2.6m,3.6m Origin: China
    The Maximum Operating Temperature: 143℃ Working Principle: 121℃ High Temperature Sterilization
    High Light:

    high pressure sterilization machine

    ,

    food sterilization equipment

    With Double Safety Interlocking Food Sterilizer Machine High Temperature High Temperature



    Ⅰ Product description



    According to the material divided into carbon steel type and stainless steel type.



    According to the sterilization method divided into spray type, water bath type, steam type and rotary type.



    According to the heating method divided into steam heat type andelectric heat type.



    According to the structure divided into single-deck type, double-deck type, two-pot parallel type and three-pot parallel type.



    The PLC control is used to precisely control the temperature, pressure and sterilization time in the sterilization process. The sterilization formula can be designed according to the type and technical requirements of the customer's products.



    Ⅱ Main Model



    Type Total capacity(m³) Treat capacity(m³) Trolley number Basket number
    ATP700*1200 0.46 0.25 1 3
    ATP900*1800 1.1 0.57 2 8
    ATP1000*2400 1.8 1.0 3 12
    ATP1200*3600 4.0 2.0 4 20



    Note: If the above model is not available, please tell us the treat capacity you need. We can customize it for you.





    Ⅲ Technical parameters



    Name Technical Data
    Test pressure 0.44Mpa
    Design pressure 0.35 Mpa
    Maximum operating pressure 0.30 Mpa
    The maximum operating temperature 143℃
    Design temperature 147℃
    Heating method Electric heating or using steam boiler as heat source
    Voltage 380 V 3 phase 50Hz(can be customized)
    Material SUS304 stainless steel
    Water quality requirement Sterilizing water, cooling water for tap water, not more than 25 mg/L chloride ion content

































    Ⅳ  Our advantages



    1. It is heated directly and cooled indirectly.The cooling water and process water are not mixed, avoiding the secondary pol-lution of food. It does not need water processing chemicals and the high temperature can contribute to the sterilization in a short time.


    2. It produces low noise, creating quiet and comfortble working environment.


    3. It takes perfect control of the temperature. During the whole process, the pressure is constantly adjusted to the the change of the pressure inside the packages, which can make the deformability of the packages go down to the lowest. It is especially suitable for the packages with air


    4. The system preheated by precess water (optional) can ensure that the temperature of the heat-insulated and heat-filled products rise continuously.


    5. Uniform water exchange method, uniform temperature, no dead ends

    Circulating water circulated constantly and uniformly in sterilization tank. Ensure uniform heat distribution at any point in the process of heating, insulation and cooling. So the packed foods of different positions of the tray gained the ideal uniform heating effect, effectively eliminate the phenomenon of blind Angle in the process of sterilization. Make the product a longer shelf life. Reduce F value variation and the phenomenon of excessive cooking.



    High Temperature Food Sterilizer Machine Autoclave Food Processing 3 Phase 50Hz 0
