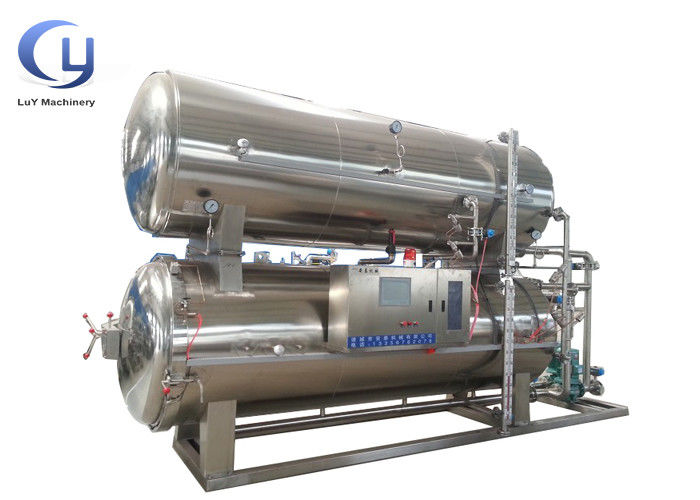

Automatic Pressure Food Sterilizer Machine , Industrial Bottle Sterilizer

Automatic Pressure Food Sterilizer Machine , Industrial Bottle Sterilizer

    • Automatic Pressure Food Sterilizer Machine , Industrial Bottle Sterilizer
  • Automatic Pressure Food Sterilizer Machine , Industrial Bottle Sterilizer

    Product Details:

    Place of Origin: China
    Brand Name: LUY

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Nude packing, can be shipped by containers or bulk cargo
    Delivery Time: Shipped in 35 days after received payment
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 5000 set per year
    Contact Now
    Detailed Product Description
    Installation: Overseas Service Provided Treat Capacity: Can Be Customized
    Length: 1.2m, 1.8m, 2m, 2.2m, 2.4m, 2.6m,3.6m Origin: China
    The Maximum Operating Temperature: 143℃ Working Principle: 121℃ High Temperature Sterilization
    High Light:

    food sterilization equipment

    ,

    autoclave retort sterilizer

    High Configuration Food Sterilizer Machine Automatic Control Pressure Customized



    Ⅰ Product description



    According to the material divided into carbon steel type and stainless steel type.



    According to the sterilization method divided into spray type, water bath type, steam type and rotary type.



    According to the heating method divided into steam heat type andelectric heat type.



    According to the structure divided into single-deck type, double-deck type, two-pot parallel type and three-pot parallel type.



    Food Sterilizer Machine was researched and development by the low-acid food heating processing expert, it’sdesigning and manufacturing according to national standard and some regulation of FDA. Reasonable inner pipelined esigning ensure evenly heat distribution and fast heat penetration. Allocate F-value to control sterilizing effect based on customer’s demand, keep food’s flavor, colour and nutrition, and enhance attached value of food product, increase economic benefit for client.



    Ⅱ Main Model



    Type Total capacity(m³) Treat capacity(m³) Trolley number Basket number
    ATP700*1200 0.46 0.25 1 3
    ATP900*1800 1.1 0.57 2 8
    ATP1000*2400 1.8 1.0 3 12
    ATP1200*3600 4.0 2.0 4 20



    Note: If the above model is not available, please tell us the treat capacity you need. We can customize it for you.





    Ⅲ Technical parameters



    Name Technical Data
    Test pressure 0.44Mpa
    Design pressure 0.35 Mpa
    Maximum operating pressure 0.30 Mpa
    The maximum operating temperature 143℃
    Design temperature 147℃
    Heating method Electric heating or using steam boiler as heat source
    Voltage 380 V 3 phase 50Hz(can be customized)
    Material SUS304 stainless steel
    Water quality requirement Sterilizing water, cooling water for tap water, not more than 25 mg/L chloride ion content

































    Ⅳ  Our advantages



    1. Retort Avoiding the product pollution, the heat exchanger is to ensure that products will not touch cooling water and steam directly to avoid pollution.


    2. Retort Water spray retort can save water and steam,A small amount of process water can rapidly cycle to warm fast to the setting sterilization temperature.


    3. Retort Creating quiet and comfortable working environment because of low noise



    4. Uniform water exchange method, uniform temperature, no dead ends

    Circulating water circulated constantly and uniformly in sterilization tank. Ensure uniform heat distribution at any point in the process of heating, insulation and cooling. So the packed foods of different positions of the tray gained the ideal uniform heating effect, effectively eliminate the phenomenon of blind Angle in the process of sterilization. Make the product a longer shelf life. Reduce F value variation and the phenomenon of excessive cooking.



    5. High temperature short time sterilization

    Using double tank hot water circulation method to sterilization, hot water heated to the temperature of the sterilization requirements before sterilization to shorten the sterilization time and improve work efficiency.
