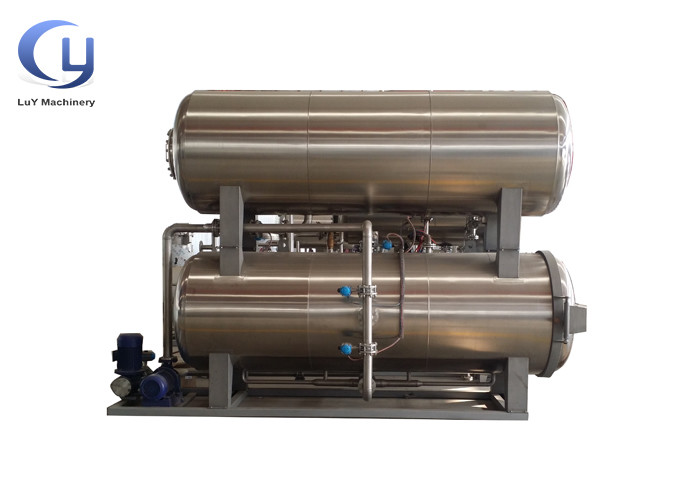

Professional Autoclave Retort Sterilizer With Double Safety Interlocking

Professional Autoclave Retort Sterilizer With Double Safety Interlocking

Professional Autoclave Retort Sterilizer With Double Safety Interlocking

Product Details:

Place of Origin: China
Brand Name: LUY

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Nude packing, can be shipped by containers or bulk cargo
Delivery Time: Shipped in 35 days after received payment
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000 set per year
Contact Now
Detailed Product Description
Installation: Overseas Service Provided Working Medium: Hot Water
Length: 1.2m, 1.8m, 2m, 2.2m, 2.4m, 2.6m,3.6m Origin: China
The Maximum Operating Temperature: 143℃ Color: Silver
High Light:

food sterilization equipment

,

autoclave retort sterilizer

SUS304 Stainless Steel Food Sterilizer Machine With Double Safety Interlocking



Ⅰ Product description



F-value sterilization is a technology which control the whole process by pre-set sterilizing effect, the whole working process is more controllable, precisely and audio-visual, this technology can ensure the sterilization effect keep uniform for each batch. F-value test technology has listed in some regulation of FDA and has been widely adopted in the U.S... It has a importance especially for tin can food.



According to the material divided into carbon steel type and stainless steel type.



According to the sterilization method divided into spray type, water bath type, steam type and rotary type.



According to the heating method divided into steam heat type andelectric heat type.



According to the structure divided into single-deck type, double-deck type, two-pot parallel type and three-pot parallel type.



Ⅱ Main Model



Type Total capacity(m³) Treat capacity(m³) Trolley number Basket number
ATP700*1200 0.46 0.25 1 3
ATP900*1800 1.1 0.57 2 8
ATP1000*2400 1.8 1.0 3 12
ATP1200*3600 4.0 2.0 4 20



Note: If the above model is not available, please tell us the treat capacity you need. We can customize it for you.





Ⅲ Technical parameters



Name Technical Data
Test pressure 0.44Mpa
Design pressure 0.35 Mpa
Maximum operating pressure 0.30 Mpa
The maximum operating temperature 143℃
Design temperature 147℃
Heating method Electric heating or using steam boiler as heat source
Voltage 380 V 3 phase 50Hz(can be customized)
Material SUS304 stainless steel
Water quality requirement Sterilizing water, cooling water for tap water, not more than 25 mg/L chloride ion content

































Ⅳ  Our advantages



1. A small quantity of the process watercan circulated quickly to amount to the expected sterilizing temperature.


2. It produces low noise, creating quiet and comfortble working environment.



3. It is heated directly and cooled indirectly.The cooling water and process water are not mixed, avoiding the secondary pol-lution of food. It does not need water processing chemicals and the high temperature can contribute to the sterilization in a short time.


4. A small quantity of the process watercan circulated quickly to amount to the expected sterilizing temperature


5. It produces low noise, creating quiet and comfortble working environment.


6. It takes perfect control of the temperature. During the whole process, the pressure is constantly adjusted to the the change of the pressure inside the packages, which can make the deformability of the packages go down to the lowest. It is especially suitable for the packages with air.
