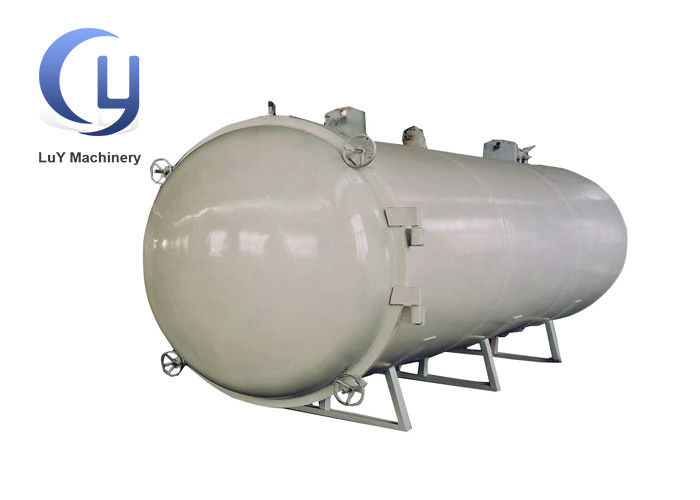

Vacuum Wood Drying Machine Quick Heating Passed Government Test

Vacuum Wood Drying Machine Quick Heating Passed Government Test

    • Vacuum Wood Drying Machine Quick Heating Passed Government Test
  • Vacuum Wood Drying Machine Quick Heating Passed Government Test

    Product Details:

    Place of Origin: China
    Brand Name: LUY

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Nude packing, can be shipped by containers or bulk cargo
    Delivery Time: Shipped in 35 days after received payment
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 5000 set per year
    Contact Now
    Detailed Product Description
    Origin: China Design Temperature: 60℃
    Using Temperature: 30-60℃(you Can Adjust It ) Delivery Time: About 35 Days
    Installation: Overseas Service Provided Working Principle: High Frequency Drying
    High Light:

    wood chip dryer machine


    wood drying equipment

    High Frequency Wood Drying Machine Environmental Protection Passed Government Test


    Ⅰ Product description


    High-frequency wood drying machine using advanced high-frequency drying methods and is suitable for drying various kinds of wood with various thicknesses. The use of high-frequency transmission heating method does not require the boiler as a heat source, environmental protection and energy saving, short drying time, and low investment cost.


    Vacuum Drying -- 60°C starting to vaporize, which can reduce wood cracking and deformation while achieving low temperature drying
    Warp deformation Recovering --- Wood clamped by hydraulic system before drying, warping deformation to be recovered when soften , making outturn greatly improving and make easy palletizing
    Quick heating --- No need heat conduction, inside and outside of wood timber are heated at the same time
    Fast dehydration--- During the heating process, stepped temperature difference between inside and outside of wood can speed up the water movement from inside wood to outside wood

    ⅡTechnical parameters


    Design temperature(℃) 60℃
    Using temperature(℃) 30-60℃(you can adjust it )
    Electricity voltage 380v 3 phases 50Hz(can be customized)
    Material Q345R carbon steel
    Open way Manual open door
    Control ways Intelligent control


    Ⅲ Main Model


    Model Effective treat capacity(cubic meter)
    DF1800*3500 3.5 cubic meters
    DF1800*4500 4.5 cubic meters
    DF1800*5500 5.5 cubic meters
    DF1800*8000 8 cubic meters
    DC1800*10000 10 cubic meters


    Note: If the above model is not available, please tell us your treat capacity you need. We can customize it for you.


    Ⅳ Our advantage


    1. When the power is off, the electrodes are not heated and the working environment is greatly improved.

    2. Fast and efficient (drying time of ordinary drying equipment is basically more than ten days to one month, high frequency drying only takes a few days, greatly shortening the production time)

    3. Environmental protection and energy saving, eliminating the need for boilers or other heating sources.

    4. It is more advantageous to heat thicker wood.

    5. Environmental pollution.

    6. Reduce labor intensity.

    7. It also have a advantage of insecticidal sterilization during the drying process.


    Vacuum Wood Drying Machine Quick Heating Passed Government Test 0
