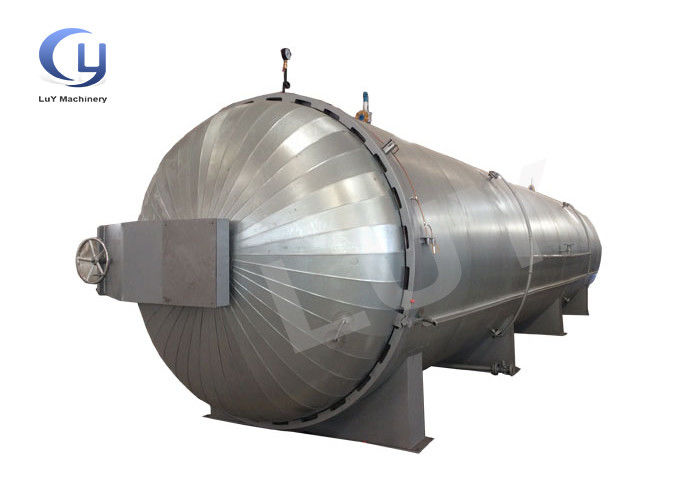

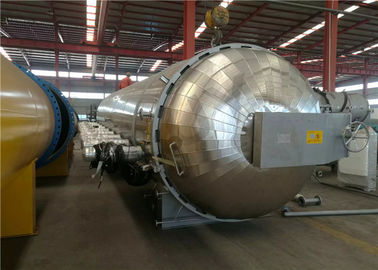

Wood Impregnation Tank Oven Heat Treatment Machine 6m 8m Length

China Wood Impregnation Tank Oven Heat Treatment Machine 6m 8m Length supplier
Wood Impregnation Tank Oven Heat Treatment Machine 6m 8m Length supplier Wood Impregnation Tank Oven Heat Treatment Machine 6m 8m Length supplier

Large Image :  Wood Impregnation Tank Oven Heat Treatment Machine 6m 8m Length

Product Details:

Place of Origin: China
Brand Name: LUY

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Nude packing, can be shipped by containers or bulk cargo
Delivery Time: Shipped in 50 days after received payment
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000 set per year
Contact Now
Detailed Product Description
Heat Ways: Electric Heating Or Boiler Heating Working Pressure: 0.1-0.7Mpa
Origin: China Length: 6m, 8m (Can Be Customized)
Working Medium: Hot Air Material: Q345R Carbon Steel

Not Using Chemicals Wood Heat Treatment Equipment More Than 10 Years Experience



Ⅰ Product description



Wood heat treatment equipment is mainly used for the production of  thermo wood, and through high temperature treatment to let the wood to achieve the purpose of anti-corrosion pest control and other purposes. Treated wood has a natural texture and beautiful appearance. Due to not need chemicals in the process, it is more environmentally friendly.



The thermo wood produced can be used for indoor and outdoor wooden floors, wooden houses, wooden pavilions, etc., and has a wide range of uses.

Compared to the conventional carbonization tank, this thermo wood machine does not require a boiler and has a low investment cost. It is very suitable for investors who want to start a new project.



Ⅱ Technical parameters



Name Wood heat treatment equipment
Design temperature(℃) 240℃
Using temperature(℃) 190--220℃(you can adjust it by yourself)
Design pressure(Mpa) 0.85Mpa
Working pressure(Mpa) 0.1-0.7Mpa
Design vacuum degree(Mpa) -0.098mpa
Tank material Q345R carbon steel
Inside tank heat material Stainless steel
Heat ways Electric heating or boiler heating
Cooling ways Natural cooling
Tank heat preservation outside with double heat preservation ,outside is stainless steel plate protective
Heat distribution hot wind reciprocate circulation
Open door ways Manual open door



Model Effective Diameter(mm) Effective Length(mm) Total capacity(m3) Effective treat capacity(m3)
T1800*6000 1800 6000 15.5 8
T1800*8000 1800 6000 20.3 10
T2200*6000 2200 8000 23 11
T2200*8000 2200 8000 31 16



Ⅲ Technology Process



Put the wood into the tank, then high temperature steam dry in the tank, then high temperature heat treatment, then cooling, then balance the pressure and recover the room temperature, then take the wood out, Finish.



Ⅳ Our advantage



1. Compared with the traditional box-type drying kiln, our thermo wood machine using cylindrical structure, the temperature distribution is more uniform, the produced wood has no cracking, no deformation, and the qualified rate is higher.





2. Use PLC touch screen automatic control, more secure and reliable.



3. About the structure, our company has special inspection and testing, must do testing. The government inspection department will issue a certificate of conformity.



Wood Impregnation Tank Oven Heat Treatment Machine 6m 8m Length



Wood Impregnation Tank Oven Heat Treatment Machine 6m 8m Length
