Customize Vacuum Timber Treatment Plant , Wood Pressure Treatment Equipment

Customize Vacuum Timber Treatment Plant , Wood Pressure Treatment Equipment

    • Customize Vacuum Timber Treatment Plant , Wood Pressure Treatment Equipment
    • Customize Vacuum Timber Treatment Plant , Wood Pressure Treatment Equipment
    • Customize Vacuum Timber Treatment Plant , Wood Pressure Treatment Equipment
    • Customize Vacuum Timber Treatment Plant , Wood Pressure Treatment Equipment
  • Customize Vacuum Timber Treatment Plant , Wood Pressure Treatment Equipment

    Product Details:

    Place of Origin: China
    Brand Name: LUY

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable

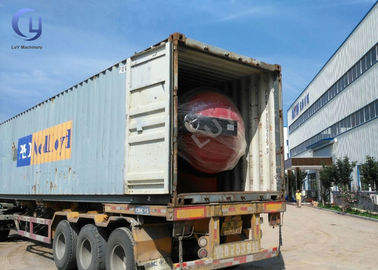

    Packaging Details: Nude packing, can be shipped by containers or bulk cargo
    Delivery Time: Shipped in 35 days after received payment
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 5000 set per year
    Contact Now
    Detailed Product Description
    Origin: China Installation: Overseas Service Provided
    Delivery Time: About 35 Days Length: From 1m To 60m (Can Be Customized)
    Design Temperature: 150℃ Material Thickness: 12mm 14mm(can Be Customized)
    High Light:

    cca treatment plant

    ,

    timber impregnation plant

    With Heating System Creosote Treatment Plant With Anti Floating System Customize



    Ⅰ Product description



    This creosote treatment plant equipped with heating system, the heat source can be provided by a thermal oil furnace or a steam boiler. If the customer's company does not have a boiler, we can also provide it for you.



    Creosote wood pole treatment plant is mainly used to treat creosote wooden pole, and is suitable for non-water soluble pharmaceuticals such as creosote oil.



    Ⅱ Main Model



    Type Effective Diameter(mm) Effective Length(mm) Total capacity(cubic meter) Effective treat capacity(cubic meter)
    DC1800*8000 1800 8000 20.3 13.5
    DC1800*10500 1800 10500 26.7 17.8
    DC1800*12000 1800 12000 30.5 20.3
    DC1800*24000 1800 24000 61.0 40.6
    DC1500*12000 1500 12000 21.1 14.1
    DC1500*8000 1500 8000 14.1 9.4
    DC2000*14000 2000 14000 43.9 29.3
    DC2200*16000 2200 16000 60.8 40.5
    DC2500*26000 2500 26000 127.5 85.0



    Note: The maximum diameter which we can customize is 4.5m, the length can be customized according to users' needs.If the above model is not available, please tell us the diameter and length of the equipment you need. We can customize it for you.



    Ⅲ Technical parameters



    Design temperature(℃): 150℃

    Design pressure(Mpa): 1.58Mpa

    Working pressure:1.0-1.4mpa

    Material: Q345R carbon steel(high pressure vessel special material

    Safety ways: Double safety interlock ,tank with three safety interlock

    Open door ways: Manual quickly open door



    Ⅳ Technology Process



    1. Initial vacuum ,before add creosote ,begin initial vacuum,the purpose is to extract air cell ,reduce the resistance when the creosote entry into the wood/wood poles,in order to immerse better wood/wood poles The vacuum degree is 79.8-90kpa ,the time is up to product requirement.



    2. Add creosote . In the vacuum state ,we add creosote ,and there is liquid level with storage tank ,after fill of the creosote oil .stop the valve.



    3. heat stage ,open open button to heat creosote oil to dilute it.



    4. Increase pressure : increase pressure into 1.0-1.4Mpa ,then keep pressure.



    5. Discharge pressure and discharge creosote ,open the valve ,let the creosote oil come back to storage tank ,when it get liquid gauge level min limited , stop the valve.



    6. Final vacuum ,open the vacuum system ,to extract the rest creosote oil ,reduce dropping liquid



    7. take out of wood/wood poles.



    Ⅴ Advantages



    1. Steam boiler as a heat source, heat pipes distribution in the left, right and bottom of the equipment, to ensure uniform heating



    2. Open door manually, open the door by electricity, open the door by hydraulic. Advanced open door method ,only one young girl can open the door easily.



    3. Automatic submerged arc welding, it has advantages of good weld quality and good weld appearance. It also hasn’t arc radiation. And our company has own special flaw detection to ensure the quality of the machine.



    4. Our equipment using automatic angle seat valve, it can automatically make the equipment to maintain the vacuum. So the vacuum degree is better than other equipments.
