|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Nude packing, can be shipped by containers or bulk cargo|
|Delivery Time:||Shipped in 35 days after received payment|
|Payment Terms:||T/T, L/C, D/A, D/P, Western Union, MoneyGram|
|Supply Ability:||5000 set per year|
|Capacity:||5-150 Cubic Meters||Installation:||Overseas Service Provided|
|Heat Source:||Wood Fire Or Gas Fire Or Electricity Heating||Heat Exchange:||Aluminum Fin|
|Origin:||China||Delivery Time:||About 35 Days|
Electric Gas Steam Heating Kiln Wood Drying Equipment Low Invest Easy Operation
Ⅰ Product description

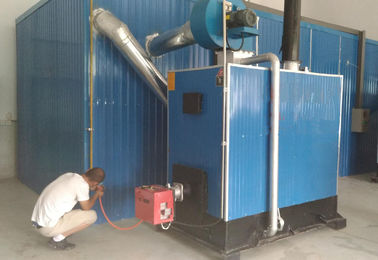

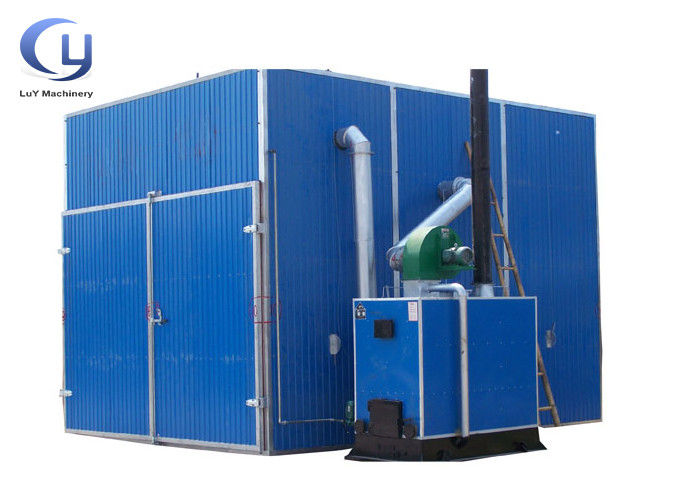

The hot-air drying kiln uses the heat energy generated by the combustion to heat the air in the kiln. The main air blower at the top of the hot air furnace sucks the air in the kiln into the furnace body through pipes to heat the air. It is sent to the kiln through a pipe, and the circulation fan in the kiln continuously circulates to evenly heat the wood.
Kiln Wood Drying Equipment is mainly used for wood drying, and is a large-scale drying equipment.
The equipment consists of two parts: the combustion device and the drying kiln. There are combustion methods
During the drying process, due to the need for dehumidification of the wood, moisture holes are provided in the top of the kiln and a dehumidifier is installed to adjust the speed of dehumidification.
Ⅱ Our advantage
1. The fan material is aluminum ,the motor ‘s insulation grade is H ,the protection grade is IP55, So that the fan can be used in high temperature and high wet environment
2. Heat exchange material is aluminum ,and around with strong support .so that it wont damage also with long lifetime,high exchange
3. Control system ,it is PLC ,and you can choose different wood variety and different thickness to set drying craft .
4. Inspect temperature and moisture ,you can observe the inside kiln ‘s temperature and moisture
5. Automatic valve to control steam or hot water or hot air ‘s flow speed to control inside temperature
