CCA ACQ Tanalith Wood Treatment Plant With Filter System High Configuration

China CCA ACQ Tanalith Wood Treatment Plant With Filter System High Configuration supplier
CCA ACQ Tanalith Wood Treatment Plant With Filter System High Configuration supplier CCA ACQ Tanalith Wood Treatment Plant With Filter System High Configuration supplier CCA ACQ Tanalith Wood Treatment Plant With Filter System High Configuration supplier CCA ACQ Tanalith Wood Treatment Plant With Filter System High Configuration supplier

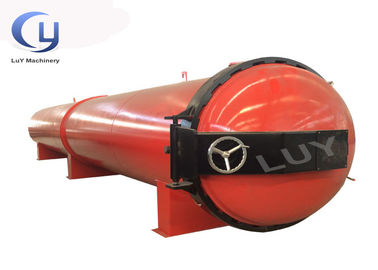

Large Image :  CCA ACQ Tanalith Wood Treatment Plant With Filter System High Configuration

Product Details:

Place of Origin: China
Brand Name: LUY

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Nude packing, can be shipped by containers or bulk cargo
Delivery Time: Shipped in 35 days after received payment
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000 set per year
Contact Now
Detailed Product Description
Effective Length: From 1m To 60m (Can Be Customized) Diameter: 1.2m, 1.5m, 1.8m, 2m, 2.5m , 3.2m, 4.5m
Origin: China Materia: Q345R Carbon Steel
Working Medium: Water-soluble Agent, Like CCA ACQ Tanalith Installation: Overseas Service Provided

CCA ACQ Tanalith Wood Treatment Plant With Filter System High Configuration



Ⅰ Product description



Wood treatment plant mainly used for deep processing of wood, vacuum pressure treatment method, so the wood to achieve anti-corrosion, pest control, and other purposes.



This wood Treatment Plant have been sold to the Myanmar, Russia, Thailand, South Korea, Philippines, Tanzania, Kenya, Uganda, Sweden and so on.



This wood treatment plant applied to various water-soluble chemicals such as CCA, ACQ, boric acid, Tanalith E and etc.



Has a wide use range, safety and reliability, and can meet the deep processing requirements of users for various types of wood.



Ⅱ Main Model



Type Effective Diameter(mm) Effective Length(mm) Total capacity(m3) Effective treat capacity(m3)
DN1500*4000 1500 4000 7.0 4.7
DN1500*6000 1500 6000 10.6 7.0
DN1800*8000 1800 8000 20.3 13.5
DN2000*14000 2000 14000 43.9 29.3
DN2200*16000 2200 16000 60.8 40.5
DN1800*10500 1800 10500 26.7 17.8
DN1200*4000 1200 4000 4.5 3.0
DN1200*6000 1200 6000 6.7 4.5
DN2500*12000 2500 12000 58.8 39.2
DN2500*14000 2500 14000 68.6 45.7
DN3200*16000 3200 16000 128.6 85.7



Note: The diameter and length can be customized according to users' needs. If the above model is not suitable, please tell us the diameter and length you need. We can customize it for you.





Ⅲ Technical parameters



Design pressure:1.58MPA

Voltage:380v 3 phase 50hz(can be customized according to users’ needs)

Vacuum operation:-0.098MPA

Working medium: various water-soluble like CCA ACQ

Working pressure:1.0-1.4MPA

Material:Q345R carbon steel





Ⅳ Technology Process



Extract Vacuum---holding vacuum and adding medicament---open the pressurizing pump after reaching the liquid level ---maintain the required pressure to infuse the medicament into the wood cells for a period of time—pressure unloading—discharge Reagents --- Vacuum again --- Restoring atmospheric pressure --- Open the tank door and remove the wood --- Complete



ⅤOur advantages



1. Our equipment automatically controls pressure and vacuum,our equipment once reach the pressure or fixed vacuum , the pressure pump or vacuum pump will stop by itself , once lower than the fixed point, the pumps will start working by automatic control system.
For example ,the power of pressure pump is 5.5kw ,for treat one circle ,our pump only work 30-60 mins ,for other company's it will work 120-180mins .



2.-- The material of this machine is Q345R steel, is the special steel plate for pressure vessel, we purchase from famous Jinan steel factory.



3. -- Manual quick open door way, advanced open door method, only one young girl can open the door easily. Double safety device, automatic safety interlocking device and Manual safety interlocking device, it solved the safety problem of wrong operation.



4.-- Our machines are equipped with a filtration system that filters out impurities.



5. -- We have special sewage outlets to prevent the residual chemicals flowing out, will not pollute the factory floor.



CCA ACQ Tanalith Wood Treatment Plant With Filter System High Configuration
