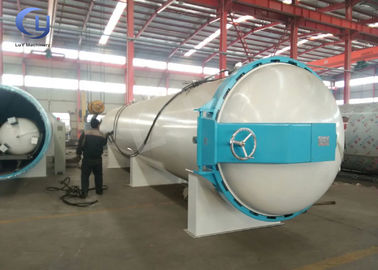

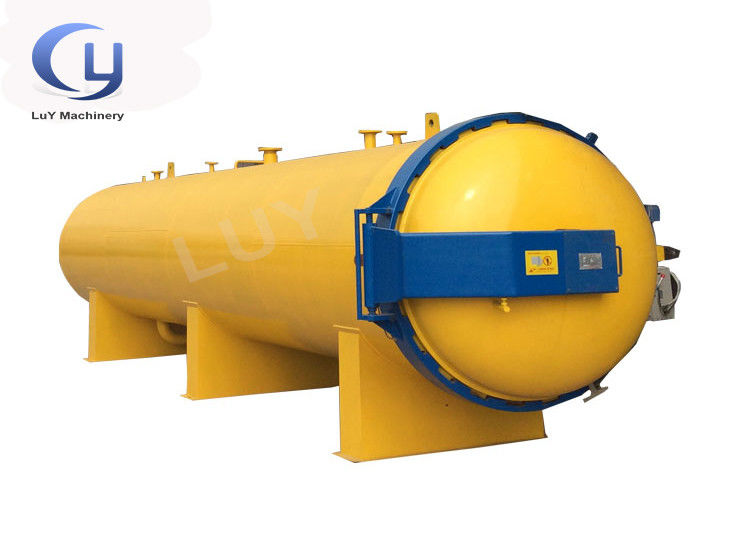

Automatic Pressure Timber Treatment Plant Passed Government Test

Automatic Pressure Timber Treatment Plant Passed Government Test

    • Automatic Pressure Timber Treatment Plant Passed Government Test
    • Automatic Pressure Timber Treatment Plant Passed Government Test
    • Automatic Pressure Timber Treatment Plant Passed Government Test
    • Automatic Pressure Timber Treatment Plant Passed Government Test
  • Automatic Pressure Timber Treatment Plant Passed Government Test

    Product Details:

    Place of Origin: China
    Brand Name: LUY

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable

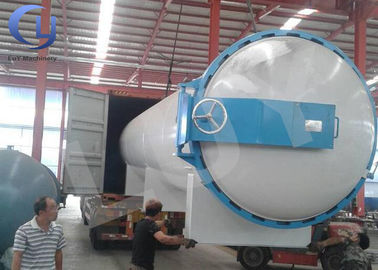

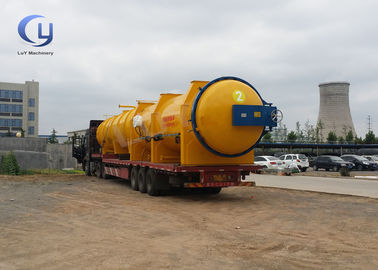

    Packaging Details: Nude packing, can be shipped by containers or bulk cargo
    Delivery Time: Shipped in 35 days after received payment
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 5000 set per year
    Contact Now
    Detailed Product Description
    Length: From 1m To 60m (Can Be Customized) Diameter: 1.2m, 1.5m, 1.8m, 2m, 2.5m , 3.2m, 4.5m
    Vacuum Degree: -0.098Mpa Delivery Time: About 35 Days
    Working Medium: Water-soluble Chemicilas, Like CCA ACQ Tanalith Working Principle: Vacuum Pressure Impregnation Method
    High Light:

    wood pressure treatment equipment


    wood impregnation plant

    Automatic Control Pressure Wood Treatment Plant Passed Government Test


    Ⅰ Product description


    This wood treatment plant has a wide use range, safety and reliability, and can meet the deep processing requirements of users for various types of wood. Have been sold to the Myanmar, Russia, Thailand, South Korea, Philippines, Tanzania, Kenya, Uganda, Sweden and so on.


    This device can be applied to various water-soluble chemicals such as CCA, ACQ, boric acid, Tanalith E and etc. Wood treatment plant mainly used for deep processing of wood, vacuum pressure treatment method, so that the wood to achieve anti-corrosion, pest control, and other purposes.




    Ⅱ Main Model


    Model Effective Diameter(mm) Effective Length(mm) Total capacity(cubic meter) Effective treat capacity(cubic meter)
    DN1500*4000 1500 4000 7.0 4.7
    DN1500*6000 1500 6000 10.6 7.0
    DN1800*6000 1800 6000 15.2 10.1
    DN1800*8000 1800 8000 20.3 13.5
    DN1800*10500 1800 10500 26.7 17.8
    DN1200*4000 1200 4000 4.5 3.0
    DN1200*6000 1200 6000 6.7 4.5
    DN2000*12000 2000 12000 37.6 25.1
    DN2000*14000 2000 14000 43.9 29.3
    DN2200*16000 2200 16000 60.8 40.5
    DN2500*12000 2500 12000 58.8 39.2



    Note: The maximum diameter which we can made for you is 4.5 meters, the length can be customized according to users' needs. If the above model is not available, please tell us the diameter and length you need. We can customize it for you.



    Ⅲ Technical parameters


    1. Material:Q345R carbon steel

    2. Voltage:380v 3 phase 50hz(can be customized according to users’ needs)

    3. Design pressure:1.58MPA

    4. Working media: various water-soluble wood protection treatment agents

    5. Working pressure:1.0-1.4MPA

    6. Vacuum degree:-0.098MPA




    Ⅳ Technology Process


    Extract Vacuum---holding vacuum and adding medicament---open the pressurizing pump after reaching the liquid level ---maintain the required pressure to infuse the medicament into the wood cells for a period of time—pressure unloading—discharge Reagents --- Vacuum again --- Restoring atmospheric pressure --- Open the tank door and remove the wood --- Complete


    ⅤOur advantages


    1. Our equipment automatically controls pressure and vacuum,our equipment once reach the pressure or fixed vacuum , the pressure pump or vacuum pump will stop by itself , once lower than the fixed point, the pumps will start working by automatic control system.

    For example ,the power of pressure pump is 5.5kw ,for treat one circle ,our pump only work 30-60 mins ,for other company's it will work 120-180mins .
    Each day saving much production cost for the users .


    2. -- Regardless of whether it is a vacuum pump, air compressor or pipeline, our configuration is relatively high, and the equipment is highly working efficient, which also saves costs for users.


    3. -- We have special sewage outlets to prevent the residual chemicals flowing out, will not pollute the factory floor.


    4. -- Many of our valves are automatic control stainless steel valves, which are several times the price of ordinary valves.


    5.-- Our machines are equipped with a filtration system that filters out impurities.


    Automatic Pressure Timber Treatment Plant Passed Government Test 0
