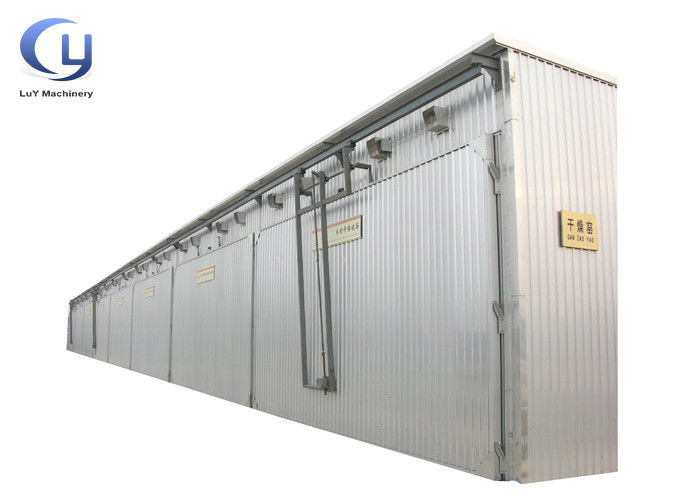

Automated Large Scale Kiln Wood Drying Equipment Electric Gas Steam Heating

Automated Large Scale Kiln Wood Drying Equipment Electric Gas Steam Heating

    • Automated Large Scale Kiln Wood Drying Equipment Electric Gas Steam Heating
    • Automated Large Scale Kiln Wood Drying Equipment Electric Gas Steam Heating
  • Automated Large Scale Kiln Wood Drying Equipment Electric Gas Steam Heating

    Product Details:

    Place of Origin: China
    Brand Name: LUY

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Nude packing, can be shipped by containers or bulk cargo
    Delivery Time: Shipped in 35 days after received payment
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 5000 set per year
    Contact Now
    Detailed Product Description
    Capacity: 5-150 Cubic Meters Material: Color Plate And Aluminum Plate
    Heat Source: Wood Fire Or Gas Fire Or Electricity Heating Heat Exchange: Aluminum Fin
    Control Ways: Intelligent Control And PLC Control Delivery Time: About 35 Days
    High Light:

    wood kiln drying machine

    ,

    shipping container wood kiln

    Electric Gas Steam Heating Kiln Wood Drying Equipment Automatic Control



    Ⅰ Product description



    Wood drying kiln is mainly used for wood drying, and is a large-scale drying equipment.
    The equipment consists of two parts: the combustion device and the drying kiln. There are combustion methods


    The hot-air drying kiln uses the heat energy generated by the combustion to heat the air in the kiln. The main air blower at the top of the hot air furnace sucks the air in the kiln into the furnace body through pipes to heat the air. It is sent to the kiln through a pipe, and the circulation fan in the kiln continuously circulates to evenly heat the wood. If steam is needed during wood drying, it can be provided by a steam generator in the hot blast furnace. If it is a room or multiple rooms, the pipeline is equipped with a plug valve, and the temperature in the kiln is controlled by adjusting the plug valve.


    During the drying process, due to the need for dehumidification of the wood, moisture holes are provided in the top of the kiln and a dehumidifier is installed to adjust the speed of dehumidification.



    Ⅱ Our advantage



    1. The fan material is aluminum ,the motor ‘s insulation grade is H ,the protection grade is IP55, So that the fan can be used in high temperature and high wet environment



     2. Heat exchange material is aluminum ,and around with strong support .so that it wont damage also with long lifetime,high exchange



     3. Control system ,it is PLC ,and you can choose different wood variety and different thickness to set drying craft .



     4. Inspect temperature and moisture ,you can observe the inside kiln ‘s temperature and moisture



     5. Automatic valve to control steam or hot water or hot air ‘s flow speed to control inside temperature



    6. Open door ways ,there are two side open ways ,hanging type ,ground track type.



     7. Our product has been sold to all over world .Thailand ,Burma ,Tanzania ,Kenya Malaysia ,Russia .



    Automated Large Scale Kiln Wood Drying Equipment Electric Gas Steam Heating 0
