Customized Autoclave  Carbon Steel or Stainless Steel









Home ProductsIndustrial Steam Jacketed Kettle

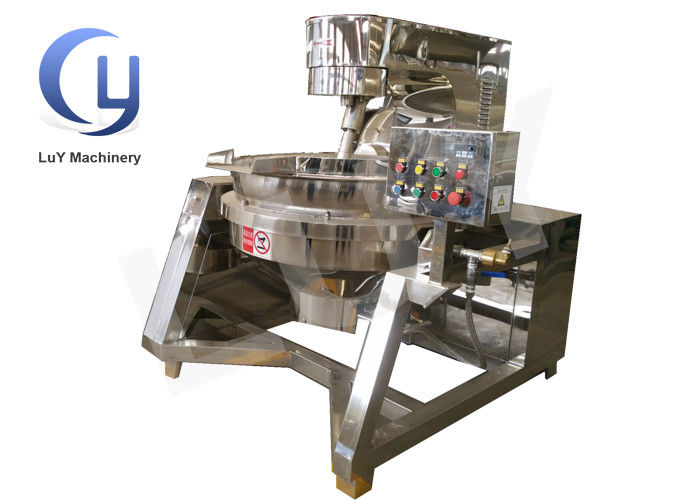

Stir Evenly Non Stick Electric Steam Jacketed Kettle 300L 400L 500L

Stir Evenly Non Stick Electric Steam Jacketed Kettle 300L 400L 500L

  • Stir Evenly Non Stick Electric Steam Jacketed Kettle 300L 400L 500L
Stir Evenly Non Stick Electric Steam Jacketed Kettle 300L 400L 500L
Product Details:
Place of Origin: China
Brand Name: LUY
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wood case packing, can be shipped by containers
Delivery Time: Shipped in 15 days after received payment
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000 set per year
Contact Now
Detailed Product Description
Material: SUS 304 Stainless Steel Treat Capacity: 100L 200L 300L 400L 500L
Origin: China Installation: Overseas Service Provided
Heating Method: Steam Or Electric Or Gas Heating Delivery Time: About 15 Days
High Light:

stainless steel steam jacketed kettle

,

large industrial cooking pots

Stir Evenly Non Stick Industrial Steam Jacketed Kettle Steam Gas Electric Heating



Ⅰ Product description



This industrial jacketed cooking kettle adopts a stainless steel pot body formed by one stamping to ensure the smoothness of the inside of the pot body. There are three heating methods: steam heating, gas heating and electric heating. The mixing method adopts special planetary agitation to make the agitator fully contact with the pot body, ensuring that the stirring has no dead angle and uniform non-stick.

The perfect combination of frequency converter and cycloidal pinwheel reducer and tilting transmission increases the transmission torque. The stirring speed can be adjusted freely in the speed range, and the hydraulic lifting can save time and effort.



Planetary mixing Jacketed kettle are widely used in the processing of foods such as candy, pharmaceuticals, dairy products, wines, cakes, preserves, beverages, canned foods, lo mei, etc., and can also be used in large restaurants or canteen soups, cooking dishes, stews, porridge, etc. It is also favored by the processing industry such as stuffing sauce production, meat products, and condiment industry. It is a good equipment for food processing to improve quality, shorten time and improve working conditions.



The mixing system adopts the combination of rotation and revolution, and the transmission ratio is not the integer transmission ratio, ensuring that there is no blind spot in the pot. The advanced transmission and sealing structure makes the transmission part and the pot clean and hygienic. The automatic/hydraulic type of this series of equipment uses hydraulic thrust to make the stirring arm reverse, free of disassembly and assembly of the mixer, and then use hydraulic thrust to tilt the pot body, easy to enter and exit the raw material to save manpower, and use the stepless frequency converter to mix high viscosity products. Uniform heating to improve heat, easy to operate, high work efficiency, low energy consumption, long service life, compact structure, easy maintenance, etc., is a mixer with excellent performance.



Ⅱ Main Model



Type Total capacity Mixing method Heating method
PL100L 100L Planet/scraping Gas/electric/steam
PL200L 200L Planet/scraping Gas/electric/steam
PL300L 300L Planet/scraping Gas/electric/steam
PL400L 400L Planet/scraping Gas/electric/steam
PL500L 500L Planet/scraping Gas/electric/steam



Note : If the above model is not available, please tell us the treat capacity you need. We can customize it for you.



Ⅲ Technical parameters



Type: Planetary Mixing Type Industrial Steam Jacketed Kettle Stir Evenly Non Stick
Material: SUS 304 Stainless steel
Voltage: 380V three phase power 50HZ(Can be customized)
Tilting method: Automatic tilting
Temperature: Automatic control
Packing: Wooden case packing


Stir Evenly Non Stick Electric Steam Jacketed Kettle 300L 400L 500L 0
